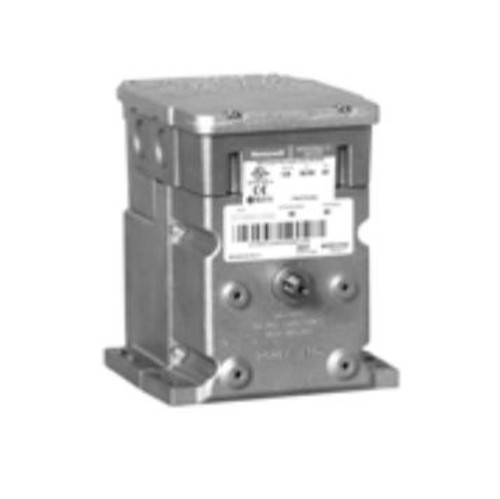

120V Non-Spring Return Foot Mounted Actuator with 75 lb-in. torque|Modutrol Motor: Non-Spring Return: 75 lb-in: 120 Vac: Modulating (4-20 mA): Adj 90-160 deg: 15-30 s
- Overall Height : 6.4375in; 164mm
- Supply Voltage : 120V AC
- Spring Return : No
- Minimum Operating Ambient Temperature : -40degree Fahrenheit
- Overall Depth : 185mm; 7.3125in
- Angle of Rotation : 90degree
- Overall Width : 140mm; 5.5in
- Includes : Screw terminals
- Brand : Honeywell
- Maximum Operating Ambient Temperature : 150degree Fahrenheit
- Driving Power Consumption : 15VA
- Regulatory Approvals : EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
- Operating Torque : 75in-lb; 8.5Nm
- Feedback : No Feedback Included
- Control Signal : Modulating (4-20 mA)
- NEMA Rating : NEMA 3
- Runtime : 15 to 30 s
- Actuator Type : Electric
- Valve Compatibility : Globe valves with Q5001 linkage
- Supply Voltage Frequency : 50/60Hz
- Application : HVAC
- Number of End Switches : 0
- Power Loss Action : Fail-in-place
- Maximum Angle Of Rotation : 90 (default) to 160°
- Enclosure Rating : NEMA 3
- Fail-Safe Action : Fail-in-place
- Manual Operation Type : None
- Drive Time : 15 to 30 sec
- Certificates and Standards : EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) UL and cUL Listed
- Number Of Auxiliary Switches : None
- Includes : Screw terminals Transformer
- Electrical Connection Type : Screw terminals
- Mounting Type : Foot-mounted
- PNC-Selector : Valve+Actuator
- Maximum Operating Ambient Temperature : 150°F; 60°C
- Minimum Operating Ambient Temperature : -40°C; -40°F
