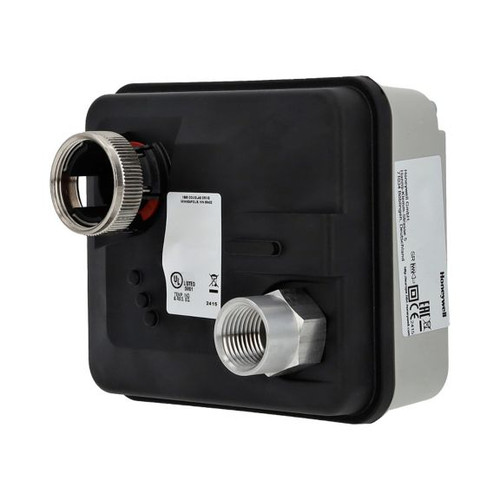

Spring Return Modulating Cartridge Globe Valve Actuator with 90 lb rated force|Cartridge Globe Valve Actuator: Spring Return: Modulating 0(2)-10 Vdc: 24Vac: 90 lbf: 400 N
- Application : HVAC
- Dimensions (in.) : 3 3/16 in. high x 4 1/4 in. wide x 5 in. deep
- Dimensions (mm) : 81 mm high x 108 mm wide x 126 mm deep
- Includes : 1/2 in. conduit hub
- Used With : 1 inch to 1-1/2 inch V58XX Globe Valves
- Weight (lb) : 1.1 lb
- Weight (kg) : 0.5 kg
- Materials : Low Maintenance Plastic Housing
- Item Type : Product
- Mounting : Threads onto V58XX valve bonnet
- Frequency : 50 Hz, 60 Hz
- Approvals, Underwriters Laboratories Inc. : Flammability Rating UL94V-5V
- Electrical Connections : Screw terminals
- Operating Humidity Range (% RH) : 5 to 95% RH
- Supply Voltage : 24 Vac +20%, -15%
- Power Consumption : Driving-- 5 VA
- Shipping and Storage Temperature Range (F) : -40 F to +158 F
- Shipping and Storage Temperature Range (C) : -40 C to +70 C
- Ambient Temperature Range (F) : 32 F to 122 F
- Ambient Temperature Range (C) : 0 C to 50 C
- Environmental, Electrical or Ingress Protection Rating : IP54,Class I Insulation (24 Vac)
- Fluid Temperature (C) : 130 C Maximum
- Fluid Temperature (F) : 266 F Maximum
- Actuator Type : Valve
- Control Signal : 0 to 10 Vdc, 2 to 10 Vdc
- Torque Rating (lb-in.) : 90 lbf
- Torque Rating (Nm) : 400 N
- Spring Return Torque/Force (lb-in., lbf) : 90 lbf
- Spring Return Torque/Force (Nm, N) : 400 N
- Switches : No
- Stroke (in.) : 1/4 in.
- Stroke (mm) : 6 mm
- Cable : Threaded conduit connector
- Timing, Nominal : Driving @ 60 Hz-- 50 sec
- Spring Return Timing : Nominal-- 10 sec
- Feedback : No
- Manual operation : None (use valve dust cap)
- Spring Return Direction : Stem up
- Input Impedance : 100K ohm
