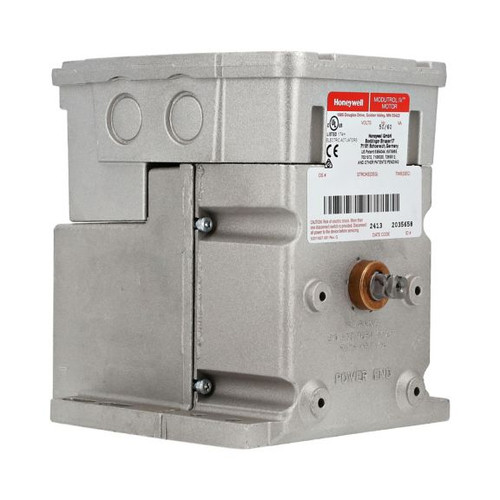

120V Non-Spring Return Foot Mounted Actuator with 75 lb-in. torque|Modutrol Motor: Non-Spring Return: 75 lb-in: 120 Vac: Proportional (135 ohm): Adj 90-160 deg: 30-60 s: 1x Aux Switch
- Feedback Included : No
- Overall Height : 6.4375in; 164mm
- Supply Voltage : 120V AC
- Spring Return : No
- Minimum Operating Ambient Temperature : -40degree Fahrenheit
- Overall Depth : 185mm; 7.3125in
- Angle of Rotation : 90degree
- Internal Auxiliary Switch Current : 120 Vac-- 7.2 AFL / 43.2 ALR
- Overall Width : 5.5in; 140mm
- Includes : Transformer
- Brand : Honeywell
- Maximum Operating Ambient Temperature : 150degree Fahrenheit
- Driving Power Consumption : 12VA
- Regulatory Approvals : EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
- Internal Auxiliary Switch Voltage : 120voltage alternating current
- Operating Torque : 75in-lb; 8.5Nm
- Feedback : No Feedback Included
- Control Signal : Proportional 135 Ohm
- NEMA Rating : NEMA 3
- Runtime : 30 to 60 s
- Actuator Type : Electric
- Valve Compatibility : Globe valves with Q5001 linkage
- Supply Voltage Frequency : 50/60Hz
- Application : HVAC
- Number of End Switches : 1
- Power Loss Action : Fail-in-place
- Maximum Angle Of Rotation : 90 (default) to 160°
- Auxiliary Switch Rating : 120 Vac-- 7.2 AFL / 43.2 ALR 240 Vac-- 3.6 AFL / 21.6 ALR
- Enclosure Rating : NEMA 3
- Fail-Safe Action : Non-fail-safe
- Manual Operation Type : None
- Drive Time : 30 to 60 sec
- Certificates and Standards : EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD) UL and cUL Listed
- Number Of Auxiliary Switches : 1 SPDT
- Electrical Connection Type : Quick-connect terminals
- Mounting Type : Foot-mounted
- PNC-Selector : Actuator
- Maximum Operating Ambient Temperature : 150°F; 60°C
- Minimum Operating Ambient Temperature : -40°C; -40°F
