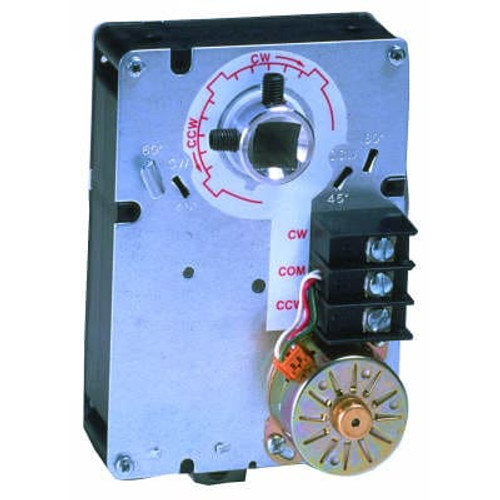

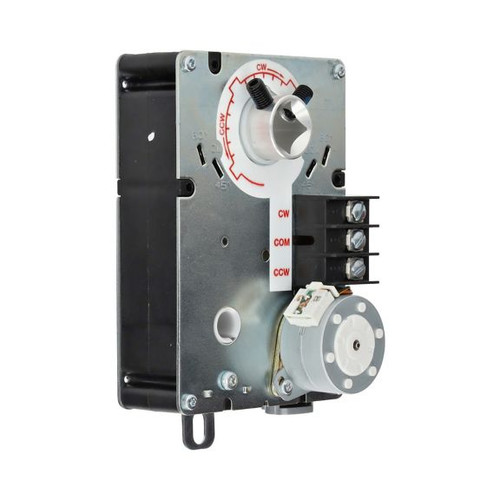

Floating: SPDT Actuator - 70 lb-in: Non-Spring Return : 24 Vac +/-20%: 50 Hz: 60 Hz|Direct Coupled Actuator: Non-Spring Return: 70 lb-in: 24 Vac: Floating: SPDT: 90 sec: Potentiometer Output
- Power Loss Action : Fail-in-place
- Maximum Angle Of Rotation : 90°
- Enclosure Rating : NEMA 1
- Fail-Safe Action : Non-fail-safe
- Maximum Shaft Size : 0.5in; 13mm
- Noise Rating : 45 (db(A) @ 1m)
- Manual Operation Type : Declutch mechanism
- Drive Time : 90 sec
- Certificates and Standards : UL94-5V CSA certified; UL File No. E4436 Guide No. XAPX2
- Minimum Shaft Size : 10mm; 0.375in
- Number Of Auxiliary Switches : 0
- Electrical Connection Type : Screw terminals
- Maximum Operating Humidity : 95 (non-condensing) %
- Mounting Type : Direct Coupled
- Minimum Operating Humidity : 0.05
- PNC-Selector : Actuator
- PNC-Display SKU : ML Series DCA
- Maximum Operating Ambient Temperature : 125°F; 50°C
- Minimum Operating Ambient Temperature : 20°F; -18°C
