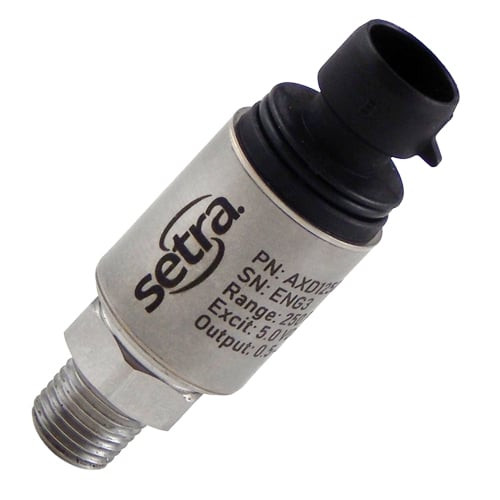

The Accusense™ Model AXD industrial pressure sensor is designed for Industrial and OEM customers who require high performance, reliability and versatility at an affordable price.
It offers exceptional ±0.25% FS accuracy for pressure ranges as low as 1 PSI up to 10,000 PSI to meet a multitude of demanding applications.
The Model AXD features all stainless steel wetted materials 17-4PHSS when ordered as "AXD1" or 316LSS when ordered as "AXDH".
Product Literature:
Brand: Setra
SKU: AXD1070BSJ72402ZCN
- Wetted Material : {1} 17-4 SS Wetted Material
- Pressure Range : {070B} 70 Bar
- Pressure Type : {S} Sealed
- Pressure Fitting : {J7} 7/16 SAE Male
- Output : {24} 0.5 to 5.5 VDC
- Elec. Termination : 2 ft (-40 to 85C rated)
- Accuracy : {Z} +/- 0.25% FS + Enhance thermal comp
- Option1 : {C} 11 Point Calibration Certificate
- Option2 : {NN} None
- Shipping : 1 lbs.
- Lead Time : 15 Day(s)
- Range : NA"
