Overview

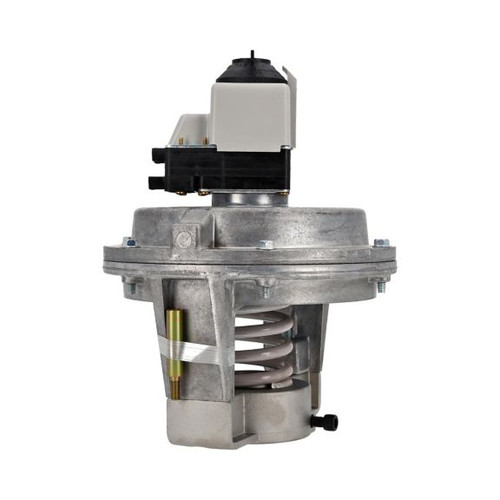

Pneumatic actuators provide proportional control of steam or hot or cold liquids in HVAC systems by operating V5011, V5013, and VGF valve assemblies. Replacement devices are available for older Honeywell actuators.
Features
Rolling diaphragm for long life and low hysteresis.Easily attached to valve.Can be installed after piping valve.Slide lock feature permits simple engagement to valve stem.Direct- or reverse-action control.Integral positive positioner relay provides positive positioning under varying load conditions.
- Dimensions (in.) : 8 in. diameter x 11 1/8 in. high
- Dimensions (mm) : 203 mm diameter x 283 mm high
- Maximum Safe Operating Pressure (psi) : 25 psi
- Maximum Safe Operating Pressure (kPa) : 172 kPa
- Temperature Range (F) : 0 F to 140 F
- Temperature Range (C) : -18 C to +60 C
- Used With : Valves with bonnet size 1-3/8 in. (35 mm)
- Operating Humidity Range (% RH) : 5 to 95% RH
- Diameter (in.) : 8 in.
- Actuator Type : Valve
- Fail Safe Mode : Spring Return
- Stroke (in.) : 3/4 in.
- Stroke (mm) : 19 mm
- Actuator Force : Medium
- Action : Direct Acting
- Spring Range (psi) : 4 psi to 11 psi
- Spring Range (kPa) : 28 kPa to 76 kPa
