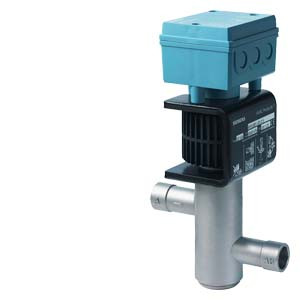

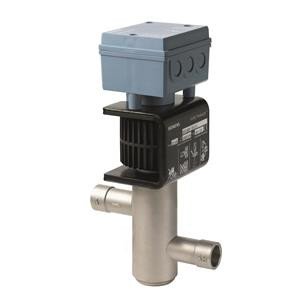

MVL661.15-0.4 - 1/2" Refrigeration Valve
Technical Specifications:
- Ambient temperature, operation: -25…55 °C
- Degree of protection: IP65
- k vs: 0.4 m³/h
- k vs reduced: 0.25 m³/h
- Leakage rate: 0.002 % of kvs
- Material, inside set: CrNi steel/brass
- Material, valve body: Steel/ CrNi steel
- Medium temperature: -40…120 °C
- Mounting position: Upright to horizontal
- Operating voltage: 24 VAC/DC , 20…30 VDC
- Permissible operating pressure: 4500 kPa
- Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA , DC 4...20 mA
- Positioning time: 1 s
- Spring return function: A->AB closed
- Valve characteristic: Linear
- Δp max: 2500 kPa
- Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Stroke resolution ΔH/H 100: 1:1000
- Material, valve body: Steel / CrNi steel
- Dimensions (W x H x D): 5.51 x 10.87 x 4.02 in
- DN: 15
Product Literature:
Brand: Siemens
SKU: MVL661.15-0.4
