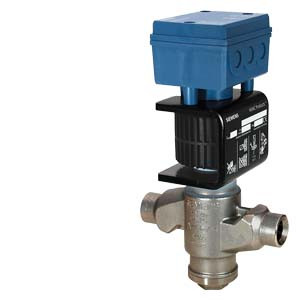

MVS661.25-016N - 2-port refrig valve, PN 63, DN25, 0.16kvs, 24VAC/DC, 0/2...10 VDC / 0/4...20 mA
Technical Specifications:
- Ambient temperature, operation: -25…55 °C
- Degree of protection: IP65
- k vs: 0.16 m³/h
- k vs reduced: 0.1 m³/h
- Leakage rate: 0.002 % of kvs
- Material, inside set: CrNi steel
- Medium temperature: -40…120 °C
- Mounting position: Upright to horizontal
- Nominal pressure: PN 63
- Operating voltage: 24 VAC/DC , 20…30 VDC
- Permissible operating pressure: 6300 kPa
- Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
- Positioning time: 1 s
- Power consumption: 22 VA
- Spring return function: Closed
- Valve characteristic: Linear
- Δp max: 2500 kPa
- Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Stroke resolution ΔH/H 100: 1:1000
- Material, valve body: Steel / CrNi steel
- Dimensions (W x H x D): 6.3 x 11.22 x 4.02 in
- DN: 25
Product Literature:
Brand: Siemens
SKU: MVS661.25-016N
