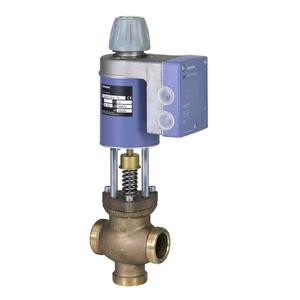

MXG461B32-12 - Magnetic Valve, 1-1/4", 2-way or floating, 14 Cv, 0-10V control, w/ fittings
Technical Specifications:
- Nominal pressure: PN 16
- Operating voltage: 24 VAC, 20…30 VDC
- Power consumption: 43 VA
- Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
- Positioning time: 2 s
- Spring return function: A->AB closed
- Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Degree of protection: IP31
- Ambient temperature, operation: -5…45 °C
- Mounting position: Upright to horizontal
- Permissible operating pressure: 1600 kPa
- Leakage rate: 0.05 % of kvs
- Leakage rate bypass: 0.2 % of kvs
- Medium temperature: -20…130 °C
- Medium: Water
- Valve characteristic: Equal-percentage , Linear
- Stroke resolution ΔH/H 100: 1:1000
- Product conformity: DVGW approved
- Material, valve body: Red brass CC499K (Rg5)
- Material, inside set: CrNi steel
- ΔP v100: 600 kPa
- Δp max: 600 kPa
- Δp s: 600 kPa
- Connecting thread: G 2"" B
- Dimensions (W x H x D): 7.4 x 17.78 x 4 in
- k vs: 12 m³/h
- DN: 32
Product Literature:
Brand: Siemens
SKU: MXG461B32-12
