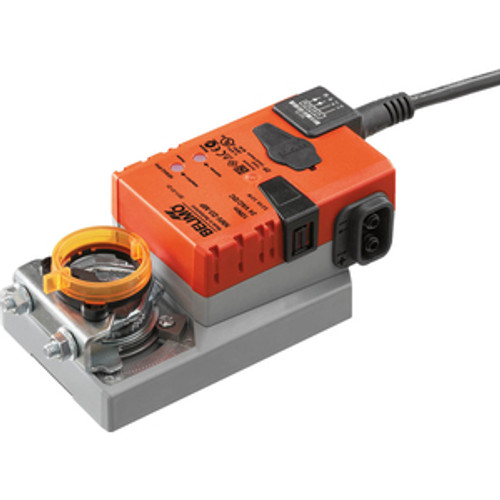

Volumetric flow controller VAV-Compact, 10 Nm, AC/DC 24 V, MP-Bus, 2...10 V, 150 s, IP54
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 3 W
- Power Consumption (Holding) : 1.5 W
- Power Consumption For Wire Sizing : 5.5 VA
- Connection Supply Control : Cable 3 ft. [1 m], 4 x 0.75 mm²
- Torque : 10 Nm
- Control Type : Communicative
- Manual Override : With push-button, can be locked
- Mechanical Interface : Universal shaft clamp 8...26.7 mm
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Tempreture : -22...122°F [-30...50°C]
