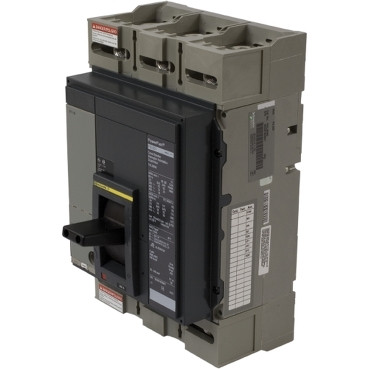

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Range : PowerPact
- Product name : PowerPact P
- Product or Component Type : Circuit breaker
- Device Application : Distribution
- Line Rated Current : 800 A
- Number of Poles : 3P
- control type : Toggle
- Breaking capacity code : K
- [Ue] rated operational voltage : 600 V AC 50/60 Hz UL 489
- Network Frequency : 50/60 Hz
- [Ics] rated service breaking capacity : 25 kA 240 V AC 50/60 Hz IEC 60947-2, 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
- [Uimp] rated impulse withstand voltage : 8 kV IEC 60947-2
- Trip unit technology : Electronic, basic, ET 1.0I, I
- Continuous current rating : 80 %
- [Ui] rated insulation voltage : 750 V IEC 60947-2
- Trip unit name : ET 1.0I
- Suitability for isolation : Yes IEC 60947-2
- utilisation category : Category A
- AWG gauge : 3 x AWG 3/0...500 kcmil aluminium/copper
- Local signalling : 1 trip indicator green)
- Mounting mode : Unit mount lug)
- Mounting Support : Lug
- Electrical connection : Lugs, line, Lugs, load
- Terminal identifier : AL800M23K
- Long time pick-up adjustment range : 1 In
- Power wire stripping length : 0.98 in (25 mm)
- Height : 12.86 in (326.64 mm)
- Width : 8.27 in (210.06 mm)
- Depth : 8.05 in (204.47 mm)
- Net Weight : 32 lb(US) (14.51 kg)
- Quantity per Set : 1
- circuit breaker application : HACR rated
- Quality labels : CE
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Product certifications : UL, CSA, NOM
- IP degree of protection : Front cover IP40
- Pollution degree : 3 IEC 60947-1
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage : -58…185 °F (-50…85 °C)
- Operating altitude : < 6561.68 ft (2000 m) without derating, 13123.36 ft (4000 m) with derating
- Category : US10DE201215
- Discount Schedule : 0DE2
- GTIN : 3606486286494
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 12.87 in (32.7 cm)
- Package 1 Width : 8.27 in (21.0 cm)
- Package 1 Length : 8.03 in (20.4 cm)
- Package 1 Weight : 32.00 lb(US) (14.515 kg)
- Warranty : 18 months
