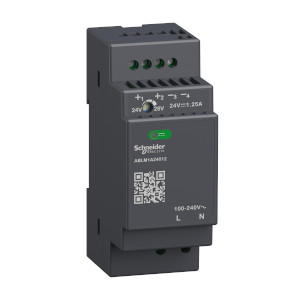

Regulated Power Supply, 100-240V AC, 24V 1.2 A, single phase, Modular
- After sales category ASC : 01 - Replace by the same Commercial Reference : new (ie not refurbished)~~
- Ambient Air Temperature For Operation : -13…131 °F (-25…55 °C) without current derating mounting position A
- Ambient Air Temperature For Operation : 131…158 °F (55…70 °C) with current derating of 2.67 % per °C mounting position A
- Available for spare part catalog : Internal Spare Part Catalog & Web Publication
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 217
- Connections - Terminals : Screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
- Connections - Terminals : Screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output
- CR access level : Restricted - Requires certified representative for installation
- CR severity code : 01 - System inoperable
- CR shelf life : 0
- Depth : 2.2 in (55.6 mm)
- dielectric strength : 3000 V AC input/output
- earthing system : IT
- earthing system : TN
- earthing system : TT
- efficiency : 87 % 115 V AC
- efficiency : 87 % 230 V AC
- Efficiency at full load : 90...264 V AC
- electrical shock protection class : Class II without PE connection
- Electromagnetic Compatibility : conforming to EN 55016-1-2
- Electromagnetic Compatibility : conforming to EN 55016-2-1
- Electromagnetic Compatibility : Disturbing field emission conforming to EN 55016-2-3
- Electromagnetic Compatibility : Electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3
- Electromagnetic Compatibility : Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3
- Electromagnetic Compatibility : Electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3
- Electromagnetic Compatibility : Immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6
- Electromagnetic Compatibility : Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2
- Electromagnetic Compatibility : Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
- Electromagnetic Compatibility : Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4
- Electromagnetic Compatibility : Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8
- Electromagnetic Compatibility : Immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11
- Electromagnetic Compatibility : Immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11
- Electromagnetic Compatibility : Immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11
- Electromagnetic Compatibility : Limits for harmonic current emissions conforming to IEC 61000-3-2
- Electromagnetic Compatibility : Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5
- Electromagnetic Compatibility : Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5
- electromagnetic emission : Conducted emissions IEC 61000-6-3
- electromagnetic emission : Radiated emissions IEC 61000-6-4
- Enclosure Material : Plastic
- Final Result for Flywheel performance tracking : Non Flywheel
- For Service Catalog Item : Finished good
- Global Keywords : ABLM
- Global Keywords : Automatic restart
- Global Keywords : Diagnostic indicator
- Global Keywords : Europe connection line Supply
- Global Keywords : Omega rail
- Global Keywords : Overload protection
- Global Keywords : Regulated switch mode power supply
- Global Keywords : Schneider electric
- Global Keywords : Short-circuit protection
- Global Keywords : Single-phase N-L1/2-phase L1-L2
- Global Keywords : SMPS
- Global Keywords : Undervoltage protection
- Global Keywords : United States connection line Supply
- Global warming ; Total life cycle? : 217 kg CO2 eq.
- Height : 3.6 in (91 mm)
- holding time : > 20 ms 115 V AC
- holding time : > 60 ms 230 V AC
- input protection type : External protection (recommended) 20 A Curve B
- input protection type : External protection (recommended) 20 A Curve C
- input protection type : External protection (recommended) 4 A Curve B
- input protection type : External protection (recommended) 4 A Curve C
- input protection type : Integrated fuse (not interchangeable) 3.15 A
- Input Voltage : 100...240 V AC phase to phase
- Input Voltage : 100...240 V AC single phase
- inrush current : 25 A 115 V
- inrush current : 50 A 230 V
- IP Degree of Protection : IP20
- Kw Rating : 30 W
- load capacitance : 3000 µF
- Manufacturer : Schneider Electric
- Maximum Leakage Current : 0.25 mA 240 V AC
- meantime between failure [MTBF] : 1000000 h at 131 °F (55 °C), 80 % load
- meantime between failure [MTBF] : 2500000 h at 77 °F (25 °C), full load
- Mounting Support : Double-profile DIN rail
- Mounting Support : Panel mounting
- Mounting Support : Top hat type TH35-15 rail IEC 60715
- Mounting Support : Top hat type TH35-7.5 rail IEC 60715
- Net Weight : 0.375 lb(US) (0.170 kg)
- network frequency limits : 50…60 Hz
- Number of Units in Package 2 : 29
- Number of Units in Package 3 : 464
- Operating Altitude : 2000 m...5000 m overvoltage category II
- Order method : ERP to ERP
- output coupling : Parallel
- output coupling : Serial
- Output Protection Type : Against over temperature, protection technology: manual reset
- Output Protection Type : Against overload and short-circuits, protection technology: automatic reset
- Output Protection Type : Against overvoltage, protection technology: manual reset
- Output Voltage : 24 V DC
- output voltage limits : 24...28 V
- Overvoltage Category : II
- Package 2 GTIN : 13606481500158
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 11.722 lb(US) (5.317 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Package 3 Height : 17.72 in (45.000 cm)
- Package 3 Length : 47.24 in (120.000 cm)
- Package 3 Weight : 214.536 lb(US) (97.312 kg)
- Package 3 width : 31.50 in (80.000 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : Yes
- Pollution Degree : 2
- power dissipation in W : 5 W
- power factor : 0.38 at 230 V AC
- power factor : 0.48 at 115 V AC
- power supply output current : 1.25 A
- power supply type : Regulated switch mode
- Preventive maintenance : 0
- Product Certifications : CB Scheme
- Product Certifications : CE
- Product Certifications : CUL Listed
- Product Certifications : CUL Recognized
- Product Certifications : EAC
- Product Certifications : KC
- Product Certifications : NEC class 2
- Product Certifications : RCM
- Product Or Component Type : Power supply
- Return code : 02 - Simple Recycle (SR)
- SCIP Number : 12ea84a2-1fbd-460a-b051-6fc2e008caa0
- Service Life : 10 year(s)
- shock resistance : 150 m/s² 11 ms
- Spare Part Order Method direction : Consult local ERP Setup
- Spare used in spare kit : No
- Standards : CSA C22.2 No 61010-1
- Standards : CSA C22.2 No 61010-2-201
- Standards : CSA C22.2 No 62368-1
- Standards : EN 61000-3-3
- Standards : EN 61010-2-201
- Standards : EN/IEC 61010-1
- Standards : EN/IEC 61204-3
- Standards : IEC 61000-3-2
- Standards : IEC 61000-6-1
- Standards : IEC 61000-6-2
- Standards : IEC 61000-6-3
- Standards : IEC 61000-6-4
- Standards : IEC 62368-1
- Standards : UL 61010-1
- Standards : UL 61010-2-201
- Standards : UL 62368-1
- Status Led : 1 LED (Green) output voltage
- Supply : SELV IEC 60204-1
- Supply : SELV IEC 60364-4-41
- Supply : SELV IEC 60950-1
- Take-back : No
- Unit Type of Package 2 : S02
- Unit Type of Package 3 : P12
- UNSPSC Classification v19 : 39121004
- UNSPSC Classification v23 : 39121004
- variant option : Modular
- vibration resistance : 10 m/s² (f= 9…200 Hz) conforming to IEC 60721-3-3
- vibration resistance : 3 mm (f= 2…9 Hz) conforming to IEC 60721-3-3
- Volume of Package 2 : 18000.000 cm3
- Volume of Package 3 : 432000.000 cm3
- Width : 1.4 in (36 mm)
