Overview

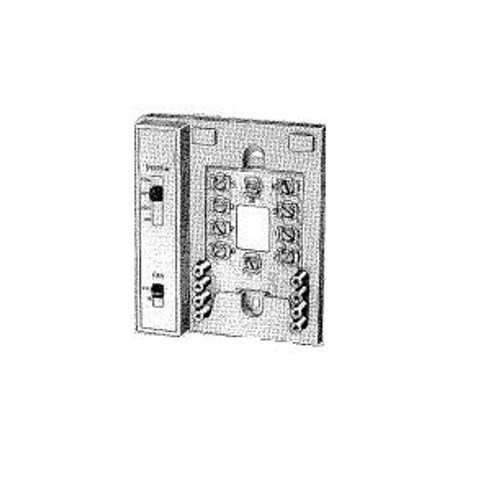

Provide manual switching for T7067 Thermostat/Transmitters.
Features
Mount directly on wall or on vertical 2 x 4 in. outlet box.T7067 mounts on subbase with mounting screws which also complete electrical connections between thermostat/transmitter and subbase.
- Application : Heat Pump Systems, Split Systems
- Dimensions (in.) : 4 3/4 in. high x 3 15/16 in. wide x 15/16 in. deep
- Dimensions (mm) : 121 mm high x 100 mm wide x 24 mm deep
- Used With : T7067
- Item Type : Product
- Application Size : Number of stages of heating and cooling depends on the chosen Logic Panel
- Power Consumption : 1A at 24 Vac Full Load
- Switch Positions (System) : HEAT-OFF-COOL-AUTO
- Switch Positions (Fan) : AUTO/ON
