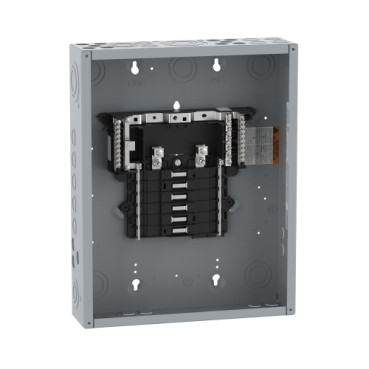

QO112L125PG

$68.00
(No reviews yet) Write a Review
SKU:
QO112L125PG
Adding to cart… The item has been added
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 12 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
Marketing Trade Name :
QO
Product Type :
Load Center
Provided Equipment :
Grounding bar
Tightening Torque :
Cover 20 lb.in
PoN Convertible Mains (lugs) :
PoN Convertible Mains (lugs)
Rated Current :
125 A
Number of Spaces :
12
Max Short Circuit Current Rating :
65 kA
Maximum Number of Single Pole Circuits :
24
Maximum Number of Tandem Breakers :
12
Number of Phases :
1 phase
Box Number :
6
Depth :
3.74 in (95 mm)
Enclosure Rating :
NEMA 1 indoor
Ambient Air Temperature for Operation :
23 °F (-5 °C), 104 °F (40 °C)
Product Certifications :
UL Listed
Category :
US1DE3A10003
Discount Schedule :
DE3A
GTIN :
785901588382
Returnability :
Yes
Country of origin :
MX
Unit Type of Package 1 :
PCE
Number of Units in Package 1 :
1
Package 1 Height :
3.74 in (9.5 cm)
Package 1 Width :
14.25 in (36.2 cm)
Package 1 Length :
17.91 in (45.5 cm)
Package 1 Weight :
11.30 lb(US) (5.126 kg)
