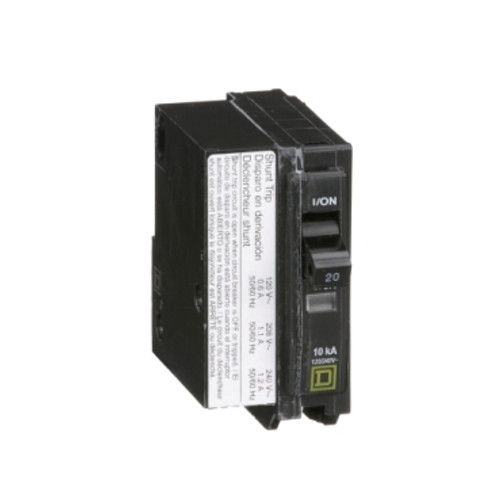

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Product : Miniature circuit-breaker
- Range : QO
- Current Rating : 20 A
- Voltage Rating : 120/240 V AC, 120 V AC
- Mounting Type : Plug-in
- Number of Poles : 1P
- Circuit Breaker Type : Standard
- Ratings : HACR and Switching Duty rated
- Electrical Connection : Pressure plate
- Interrupt Rating : 10 kA 120/240 V AC, 10 kA 120 V AC
- Number of Panel Spaces : 1
- Wire Size : AWG 14...AWG 8 copper or aluminium
- Tightening Torque : 35.40 lbf.in (4 N.m)
- Height : 2.99 in (76 mm)
- Width : 0.75 in (19 mm)
- Depth : 2.91 in (74 mm)
- Net Weight : 0.25 lb(US) (0.113 kg)
- Certifications : UL Listed, CSA
- Ambient Rating : 104 °F (40 °C)
- Category : US1DE2A00004
- Discount Schedule : DE2A
- GTIN : 785901400103
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 0.70 in (1.778 cm)
- Package 1 Width : 3.00 in (7.62 cm)
- Package 1 Length : 3.30 in (8.382 cm)
- Package 1 Weight : 4.32 oz (122.47 g)
- Unit Type of Package 2 : BB1
- Number of Units in Package 2 : 10
- Package 2 Height : 3.20 in (8.128 cm)
- Package 2 Width : 3.40 in (8.636 cm)
- Package 2 Length : 7.70 in (19.558 cm)
- Package 2 Weight : 2.82 lb(US) (1.279 kg)
- Unit Type of Package 3 : CAR
- Number of Units in Package 3 : 100
- Package 3 Height : 6.80 in (17.272 cm)
- Package 3 Width : 8.10 in (20.574 cm)
- Package 3 Length : 17.20 in (43.688 cm)
- Package 3 Weight : 28.70 lb(US) (13.018 kg)
- Warranty : 18 months
