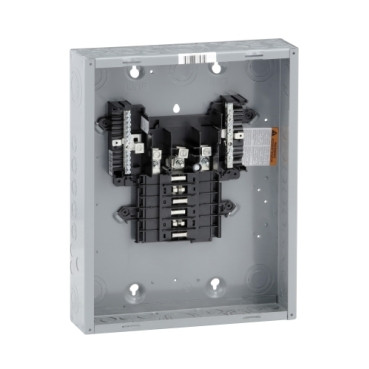

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.
- Marketing Trade Name : QO
- Product Type : Load Center
- Cover Type : Order separately
- Tightening Torque : Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper, Cover 20 lb.in
- PoN Convertible Mains (lugs) : Fixed Mains (lugs)
- Rated Current : 125 A
- Number of Spaces : 12
- Max Short Circuit Current Rating : 65 kA
- Maximum Number of Single Pole Circuits : 12
- Maximum Number of Tandem Breakers : 0
- Number of Phases : 3 phase
- Voltage Rating : 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
- Wire Size : AWG 6...AWG 2/0 aluminium/copper
- Ground Bar : Grounding bar included (not installed)
- Electrical Connection : Lugs
- Wiring Configuration : 3-wire, 4-wire
- Busbar Material : Tin plated copper: busbar
- Enclosure Material : Welded sheet steel
- Surface Finish : Baked enamel Gray
- Box Number : 6
- Height : 17.91 in (455 mm)
- Width : 14.25 in (362 mm)
- Enclosure Rating : NEMA 1 indoor
- Ambient Air Temperature for Operation : 23 °F (-5 °C), 104 °F (40 °C)
- Product Certifications : UL Listed
- Category : US10DE300011
- Discount Schedule : 0DE3
- GTIN : 785901295037
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 6.30 in (16.002 cm)
- Package 1 Width : 16.50 in (41.91 cm)
- Package 1 Length : 19.20 in (48.768 cm)
- Package 1 Weight : 11.00 lb(US) (4.99 kg)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 54
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Width : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 596.21 lb(US) (270.438 kg)
- Warranty : 18 months
