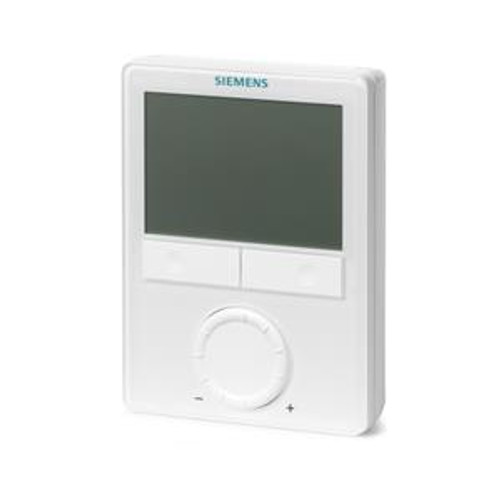

RDG400 - Room thermostat, AC 24 V, VAV heating and cooling systems
Technical Specifications:
- Ambient temperature, operation: 0…50 °C
- Analog output, current: 1 mA
- Analog output, signal: DC 0...10 V
- Analog outputs: VAV actuator, electric heater, valve
- Degree of protection: IP30
- Dimensions (W x H x D): 5.04 x 1.21 x 3.66 in
- Frequency: 50/60 Hz
- Measuring range, temperature: 0…49 °C
- Mounting: Wall mounting with screws
- Mounting position: Wall mounting
- Operating voltage: 24 VAC
- Positioning signal: DC 0...10 V, 3-position
- Power consumption: 2 VA
- Setpoint setting range: 5…40 °C
- Switching differential: Heating: 0.5…6 K
- Triac output, switching current: 1 A
- Triac output, switching voltage: 24 V
- Triac outputs: VAV actuator, valve, el. heater , 2-position, PWM, 3-position
Product Literature:
Brand: Siemens
SKU: RDG400
