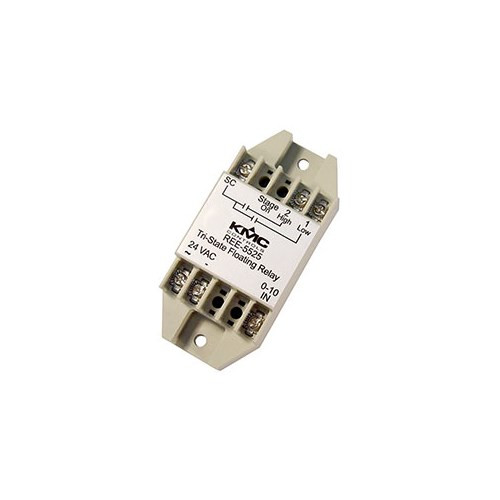

Relay: Proportional to Tri-State/Floating, 0-10VDC Input :- This triac relay module is designed primarily for controlling tri-state actuators in retrofit applications. The REE-5525 allows a low-voltage, low-power, proportional (0-10 VDC) output from a controller or Building Automation System to operate a 24 VAC tri-state (floating) actuator at up to 12 VA and 30 VAC. Optically isolated, zero-crossing triacs control the two (CW and CCW) outputs. If there is a loss of power, no signal will be generated, and the actuator will remain in its last position. The stage sequence operates in this manner: Stage 1 turns on at or below 1.5 VDC and off at or above 3.5 VDC. (It is on at 0 VDC.)Stage 2 turns on at or above 9.5 VDC and turns off at or below 7.5 VDC. (It is on at 10 VDC.)Both outputs are off between 3.5 and 7.5 VDC.
Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.
