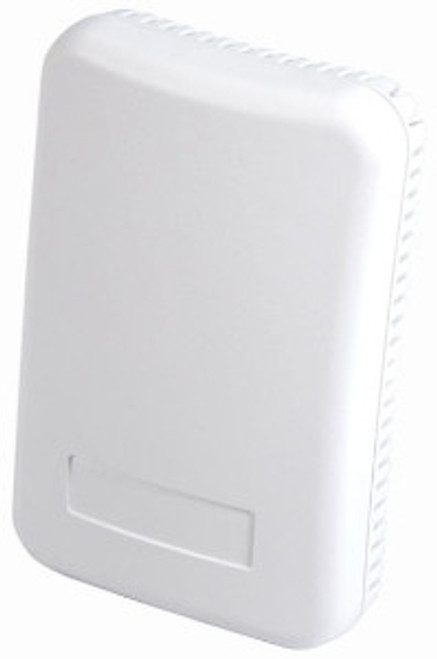

Room Hum & Temp Combo Sensor: Econ|3% Accuracy|4-20mA Output|Temp|10K Ohm Type 2|I/NET
- [Us] rated supply voltage : 12...24 V DC~~
- Application : Wall Installation
- Brand : Veris Industries
- By Schneider : Yes
- Color : Cloud white
- Connections - Terminals : Screw terminal AWG 24...AWG 14)
- Depth : 1.3 in (33 mm)
- Feature Level : Economy
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Height : 4.8 in (123 mm)
- Humidity Calibration Certificate : Humidity: none
- Humidity Measurement Drift : =1 % annually
- Humidity Measurement Resolution : 0.1 % RH
- Location : Living Space
- Manufacturer : Schneider Electric
- Material : ABS thermoplastic: enclosure
- Maximum Input Current per phase : 30 mA
- Mounting Support : Wall
- Output Type : Analog 4...20 mA
- Output Type : Resistive Output
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Or Component Type : Sensor
- Range Compatibility : Network 8000
- Range Compatibility : TAC I/NET
- Response Time : 110 s (to 90% change @ 20 °C)
- Selection Tools : HVAC Sensors
- Sensor Signal Category : Analog
- Sensor Signal Category : Thermistor
- Sensor Type : 10 kOhm type 2 thermistor Temperature
- Sensor Type : Thin-film capacitive Humidity
- Setpoint : No
- Take-back : No
- Temperature Ambient Operating Range : 50…95 °F (10…35 °C)
- Temperature Measurement Accuracy : +/- 1 °C
- Type Of Measurement : Humidity
- Type Of Measurement : Temperature
- Width : 3.2 in (82 mm)
- With Override : No
