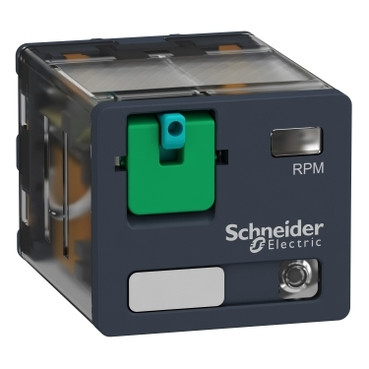

This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.
- Range of Product : Harmony Electromechanical Relays
- Series name : Power
- Product or Component Type : Plug-in relay
- Device short name : RPM
- Contacts type and composition : 3 C/O
- [Uc] control circuit voltage : 24 V DC
- [Ithe] conventional enclosed thermal current : 15 A -40…131 °F (-40…55 °C)
- Status LED : With
- control type : Lockable test button
- Utilisation coefficient : 20 %
- Shape of pin : Flat
- [Ui] rated insulation voltage : 250 V IEC, 300 V CSA, 300 V UL
- [Uimp] rated impulse withstand voltage : 4 kV 1.2/50 µs
- Contacts material : AgNi
- [Ie] rated operational current : 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC
- Maximum switching voltage : 250 V IEC
- Resistive load current : 15 A 250 V AC, 15 A 28 V DC
- Maximum switching capacity : 3750 VA, 420 W
- Minimum switching capacity : 170 mW 10 mA, 17 V
- Operating rate : <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
- Mechanical durability : 10000000 cycles
- Electrical durability : 100000 cycles resistive
- Average coil consumption : 1.5 W
- Drop-out voltage threshold : >= 0.1 Uc DC
- Operate time : 20 ms at nominal voltage
- Release time : 20 ms at nominal voltage
- Average coil resistance : 320 Ohm at 68 °F (20 °C) +/- 10 %
- Rated operational voltage limits : 19.2...26.4 V DC
- Protection category : RT I
- Test levels : Level A group mounting
- Operating position : Any position
- Pollution degree : 3
- Safety reliability data : B10d = 100000
- Net Weight : 0.12 lb(US) (0.054 kg)
- device presentation : Complete product
- Standards : UL 508, CSA C22.2 No 14, IEC 61810-1
- Product Certifications : EAC, UL, CSA
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Ambient air temperature for operation : -40…131 °F (-40…55 °C)
- Degree of protection (Housing only) : IP40 conforming to IEC 60529
- Shock resistance : 15 gnin operation, 30 gnnot operating
- Category : US10CP221127
- Discount Schedule : 0CP2
- GTIN : 3389119402057
- Returnability : Yes
- Country of origin : CN
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.85 in (4.7 cm)
- Package 1 Width : 1.10 in (2.8 cm)
- Package 1 Length : 1.22 in (3.1 cm)
- Package 1 Weight : 1.98 oz (56.0 g)
- Unit Type of Package 2 : BB1
- Number of Units in Package 2 : 10
- Package 2 Height : 1.26 in (3.2 cm)
- Package 2 Width : 4.06 in (10.3 cm)
- Package 2 Length : 7.09 in (18.0 cm)
- Package 2 Weight : 21.16 oz (600.0 g)
- Unit Type of Package 3 : S02
- Number of Units in Package 3 : 160
- Package 3 Height : 5.91 in (15.0 cm)
- Package 3 Width : 11.81 in (30.0 cm)
- Package 3 Length : 15.75 in (40.0 cm)
- Package 3 Weight : 22.41 lb(US) (10.166 kg)
- Warranty : 18 months
