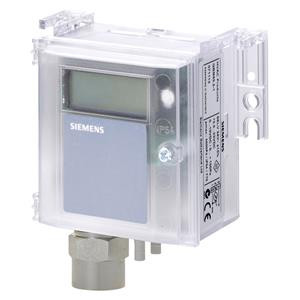

QBM3230U1D - Air DP Sensor, 0" to 1", Selectable Range/Output, Display
Technical Specifications:
- Connection, electrical: Screw terminals
- Dimensions (W x H x D): 3.25 x 2.95 x 1.93 in
- Measuring range, pressure: 0…300 Pa, 0…100 Pa, 0…50 Pa
- Medium temperature: 0…70 °C
- Pressure connection: 0.25"" Plastic Tubing
- Operating voltage: 13.5…33 VDC
- Analog outputs: 0-10V / 0-5V / 4-20mA (2 Wire)
- Measuring range: 0"" to 1"", Adjustable
- Connection cable: For use with 1/4 in. push on tubing
- Display: LCD
- Connecting thread: Screw terminal strip
Product Literature:
Brand: Siemens
SKU: S55720-S523
