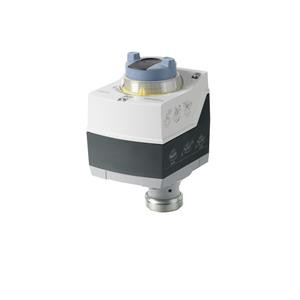

SAS61.03U - MT Series SAS Electronic Valve Act, NSR, 24V, 0-10V / 4-20 mA Proport Control
Technical Specifications:
- Fail Safe: No
- Spring return function: Non-spring return functionality
- Position feedback: DC 0…10 V
- Power consumption: 5.7 VA, 2.3 W, Quiet power: 1.8 W
- Mounting position: Upright to horizontal
- Ambient temperature, operation: -5…55 °C
- Ambient humidity, operation: 95 % r.h.
- Operating voltage: 24 VAC/DC
- Supply Voltage: 24 VAC
- Stroke: 5.5 mm
- Stroke, mm: 5.5 mm
- Dimensions (W x H x D): 3.66 x 5.94 x 3.15 in
- Degree of protection: IP54
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Siemens
SKU: SAS61.03U
