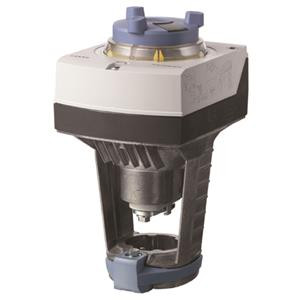

SAX61.03U - Flowrite Actuator, 24Vac, 0-10Vdc / 4-20 mA Proportional NSR
Technical Specifications:
- Fail Safe: No
- Positioning signal: DC 0…10 V, DC 4…20 mA, 0…1000 Ohm
- Position feedback: DC 0…10 V
- Power consumption: 6.3 VA, 2.5 W, Quiet power: 1.7 W
- Mounting position: Nema 1 (interior only), Upright to horizontal
- Ambient humidity, operation: 5…95 % r.h.
- Operating voltage: 24 VAC/DC
- Supply Voltage: 24 VAC
- Frequency: 50/60
- Stroke: 20 mm
- Positioning time: 30 s
- Stroke, mm: 20 mm
- Ambient temperature, operation: -5…55 °C
- Dimensions (W x H x D): 4.88 x 9.53 x 5.91 in
- Degree of protection: IP54
- Spring return function: Non-spring return functionality
Product Literature:
Brand: Siemens
SKU: SAX61.03U
