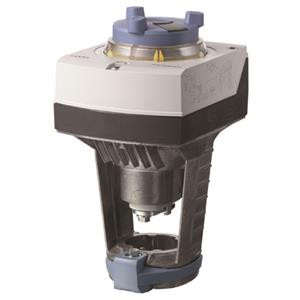

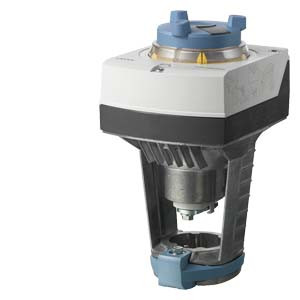

SAX81.03U - Flowrite Actuator, 24 Vac, Floating Control, Non-Spring Return
Technical Specifications:
- Fail Safe: No
- Positioning signal: 3-position
- Position feedback: DC 0…10 V
- Power consumption: 7.2 VA, 4.3 W, Quiet power: 1.5 W
- Mounting position: Nema 1 (interior only), Upright to horizontal
- Ambient humidity, operation: 95 % r.h.
- Operating voltage: 24 VAC/DC
- Supply Voltage: 24 VAC
- Frequency: 50/60
- Stroke: 20 mm
- Positioning time: 30 s
- Stroke, mm: 20 mm
- Ambient temperature, operation: -5…55 °C
- Dimensions (W x H x D): 9.53 x 4.88 x 6.02 in
- Degree of protection: IP54
- Spring return function: Non-spring return functionality
Product Literature:
Brand: Siemens
SKU: SAX81.03U
