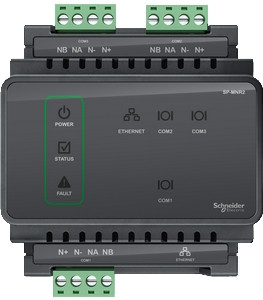

3 isolated RS-485 connections |10/100 Ethernet communication |Encrypted module network using RS-485 communication |RS-485 or Ethernet network expansion |DIN Rail mounting
- [Us] rated supply voltage : 12 V DC
- Application : Comms expander
- Brand : Schneider Electric
- By Schneider : Yes
- Communication Port Support : RS485
- Depth : 3.07 in (78 mm)
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Edge control
- Global Keywords : COMMS Expander
- Global Keywords : Security
- Height : 2.4 in (60 mm)
- Indivisible Sale Qty : 1
- Line Rated Current : 65 mA
- Mounting Mode : DIN Rail Mount
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Relative Humidity : 3…93 % RH, non-condensing
- SCIP Number : 718c040e-0614-416c-a41a-8d48866248dd
- Take-back : No
- Temperature Ambient Operating Range : 14…131 °F (-10…55 °C)
- Temperature Shipping and Storage Range : 14…185 °F (-10…85 °C)
- Width : 3.5 in (90 mm)
