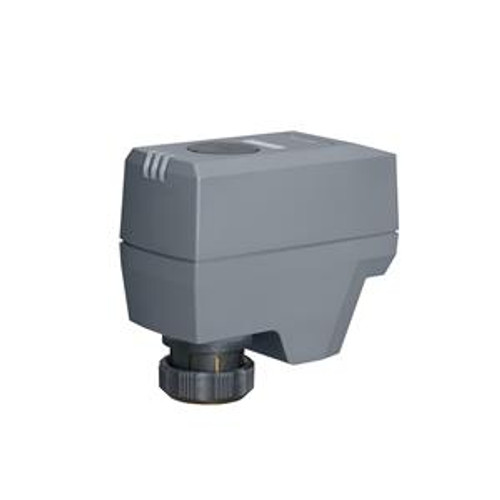

SSB161.05U - 0-10V, Fail in Place, Powermite MZ Series Actuator
Technical Specifications:
- Actuator Type: Electronic
- Actuation Style: Linear
- Operating voltage: AC 20.4…27.6 V, 24 V, DC 19.2…28.8 V24 V
- Positioning force: 200 N
- Fail Safe: No
- Spring return function: Non-spring return functionality
- Control Signal: 0...10 Vdc
- Positioning time: 27.5 s
- Position feedback: DC 0…10 V
- Power consumption: 3 VA
- Mounting position: Upright to 90° inclined
- Ambient temperature, operation: 1…110 °C
- Ambient humidity, operation: 5…95 % r.h.
- Supply Voltage: 24 VAC/DC
- Stroke: 5.5 mm
- Stroke, mm: 5.5 mm
- Dimensions (W x H x D): 4.1 x 3.7 x 1.89 in
- Degree of protection: NEMA2
Product Literature:
Brand: Siemens
SKU: S55180-A151
