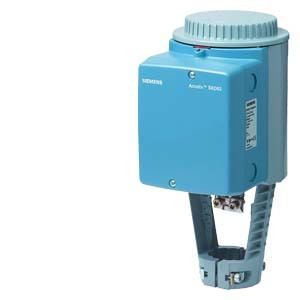

SKD60U - Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, NSR, 3/4" Stroke
Technical Specifications:
- Ambient temperature, operation: -15…50 °C
- Degree of protection: IP54
- Dimensions (W x H x D): 5 x 11.81 x 6.65 in
- Medium temperature: -25…150 °C
- Mounting position: Upright to horizontal
- Position feedback: DC 0…10 V, 4…20 mA
- Positioning signal: DC 0...10 V, DC 4...20 mA, 0...1000 Ohm
- Positioning time: Open:30 s, Close:15 s
- Spring return function: Non-spring return functionality
- Stroke: 20 mm
- Operating voltage: 19.2…31.2 V24 V#AC
- Power consumption: 10 VA
- Positioning force: 1000 N
Product Literature:
Brand: Siemens
SKU: SKD60U
