SKD82.50U

$623.34
(No reviews yet) Write a Review
SKU:
SKD82.50U
Adding to cart… The item has been added

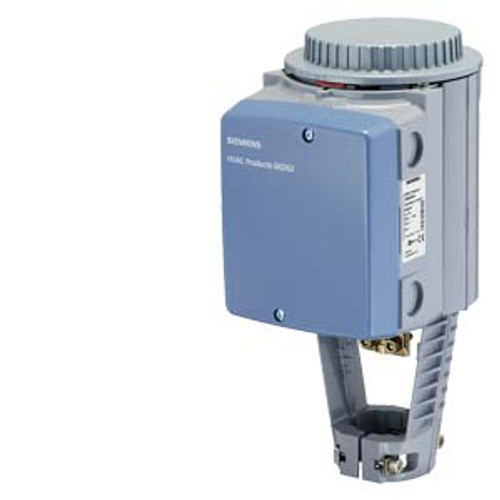

SKD82.50U - Flowrite Electro-Hydraulic Actuator, float, NSR, 3/4" Stroke
Ambient temperature, operation :
-15…50 °C
Degree of protection :
IP54
Dimensions (W x H x D) :
11.81 x 5 x 6.65 in
Medium temperature :
-25…150 °C; 5…130 ºF
Mounting position :
NEMA 1 (interior only), Upright
Positioning time :
120 s
Spring return function :
Non-spring return functionality
Stroke :
20 mm
Operating voltage :
19.2…28.2 V24 V#AC
Power consumption :
9 VA
Positioning force :
1000 N
Positioning signal :
3-position
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c10439_Electrohydraulic%2520actuators%2520SKD.._en.pdf&EXT=.pdf&SID=10439&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c44958_Flowrite%2520599%2520Series%25202-1_2%2520to%25206-Inch%2520Valves%2520ANSI%252012_en.pdf&EXT=.pdf&SID=44958&KEY=3&DTP=Data+Sheet+for+Product
Datasheet :
https://hit.sbt.siemens.com/RWD/Binary/GetStream?VALUE=Assets%5c45078_Flowrite%2520%2520EA%2520599%2520Series%2520SKD%2520Electronic%2520Valve%252024%2520Va_en.pdf&EXT=.pdf&SID=45078&KEY=3&DTP=Data+Sheet+for+Product
