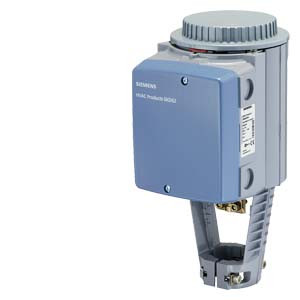

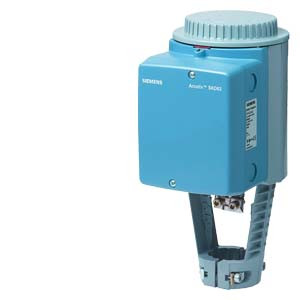

SKD82.51U - Flowrite Electro-Hydraulic Act, Float Control, SR, 250 lb Thrust, 3/4" Stroke
Technical Specifications:
- Ambient temperature, operation: -15…50 °C
- Degree of protection: IP54
- Dimensions (W x H x D): 11.81 x 5 x 6.65 in
- Medium temperature: -25…150 °C
- Mounting position: NEMA 1 (interior only), Upright
- Positioning time: 120 s
- Spring return function: Spring return functionality
- Stroke: 20 mm
- Operating voltage: 24 VAC
- Power consumption: 14 VA
- Positioning force: 1000 N
- Positioning signal: 3-position
Product Literature:
Brand: Siemens
SKU: SKD82.51U
