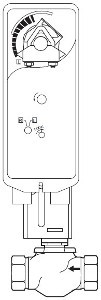

Valve Assembly: |Body Size: 1 in/li>|Configuration: 2-Way |Type: Globe |Body Pattern: Straightway |Connection: NPT |Stem Flow Action: Stem up A open |Material Trim: Brass |Flow Coefficient: 10 cv |Close-Off Pressure: 180 PSI |Actuator Type: Electric |Control Signal: Proportional |Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc |Loss of Power Type: Spring Return |Loss of Power Position: Normally open |Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC |Leads and Connections: 3 ft Appliance |Torque: 60 in-lb |Mechanical Movement: Rotary |Auxiliary Switch: 2 SPDT |Protection Rating: NEMA 1, NEMA 2 Assembly Components:|Valve Body: VB-7213-0-4-07 |Valve Range: Venta |Valve Linkage: AV-602 |Actuator: MS41-7073-502 |Actuator Range: SmartX Actuator |Actuator Comment: NEMA 1. NEMA 2 (IEC IP54) with conduit connector in the down position.
Brand: Schneider Electric
SKU: VS-7213-547-4-07
Product Literature:
