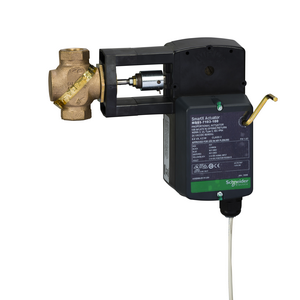

Schneider Electric VS-7213-804-4-08

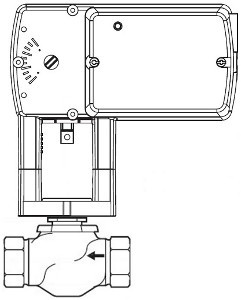

Valve Assembly: |Body Size: 1 in/li>|Configuration: 2-Way |Type: Globe |Body Pattern: Straightway |Connection: NPT |Stem Flow Action: Stem up A open |Material Trim: Brass |Flow Coefficient: 14 cv |Close-Off Pressure: 150 PSI |Actuator Type: Electric |Control Signal: Proportional |Control Signal Range: 2 to 10 VDC |Loss of Power Type: Spring Return |Loss of Power Position: Normally open |Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC |Leads and Connections: 3 ft Plenum |Force: 105 lbf |Mechanical Movement: Linear |Protection Rating: NEMA 2 Assembly Components:|Valve Body: VB-7213-0-4-08 |Valve Range: Venta |Valve Linkage: None, tool-less connection |Actuator: MS51-7103-100 |Actuator Range: SmartX Actuator
