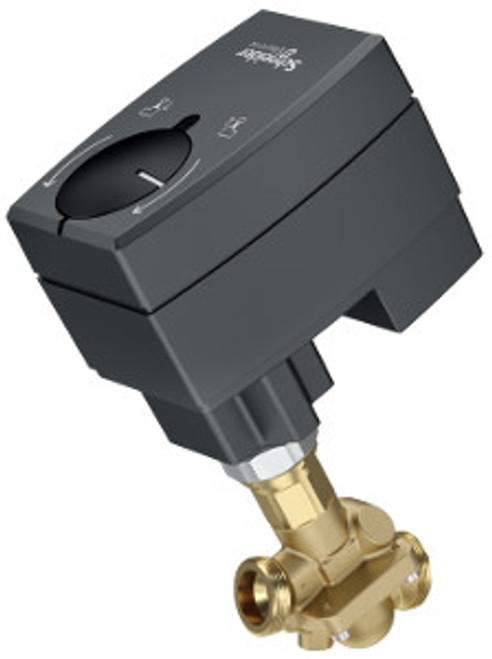

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

VP229E-25HN-012-U201

$520.25
(No reviews yet) Write a Review
SKU:
VP229E-25HN-012-U201
Adding to cart… The item has been added
PI 1IN 12GPM FLPR SRO 24V
[Us]ratedsupplyvoltage :
24VAC
AccuracySettingKnob :
5%
ActuatorComment :
Notforusewithsteam
ActuatorProductRange :
SpaceLogic
ActuatorProductSeries :
MP300-SR
ActuatorType :
Electric
analogueinputrange :
0...10VDC, 4...20mADC
AuxiliarySwitch :
No
BodySize :
25mm(1in)
BySchneider :
Yes
Close-OffPressure :
1599.58kPa, 232psi
ConduitConnection :
Conduitconnectorplate
Configuration :
2-Way
ConnectionType :
GExternal
FeedbackSignal :
0to10VDC, 2to10VDC
FinalResultforConnectable :
Notconnectable
FinalResultforFlywheelperformancetracking :
Notconnectable
FlowCharacteristic :
Linear
FlowRateMaximum(l/s&l/h) :
0.83l/s
FlowRateMaximum(m\xc2\xb3/h) :
3m\xc2\xb3/h
FlowRateMaximumGPM :
13.2gal(US)/min
FlowRateMinimum(l/s&l/h) :
0.15l/s
FlowRateminimum(m\xc2\xb3/h) :
0.54m\xc2\xb3/h
FlowRateminimumGPM :
2.4gal(US)/min
FlowRateNominal(gpm) :
12gal(US)/min
FlowRateNominal(lps) :
0.76l/s
FlowRateNominal(m\xc2\xb3/h) :
2.7m\xc2\xb3/h
Forcelbf :
68lbf
ForceN :
300N
IndivisibleSaleQty :
1
InsulationClass :
ClassIII
IPProtectionRating :
IP54
LeadsandConnections :
TerminalBlock
LossofPowerPosition :
Normallyopen
LossofPowerType :
Springreturn
Manufacturer :
SchneiderElectric
MaterialBody :
CW602Nbrass
MaterialDiaphragm :
EPDM
MaterialStem :
StainlessSteel
MaterialStemSeal :
EPDM
MechanicalMovement :
Linear
Override :
Automaticreset
PipeSize :
25mm
PowerConsumptionRunningVA :
9VAAC
PressureAllowableStatic :
16bar
PressureClass :
PN16
PressureDifferentialMaximum(kPa) :
600kPa
PressureDifferentialMaximumPSI :
87psi, 87psi
PressureDifferentialMinimum(kPa) :
35kPa
PressureDifferentialMinimumPSI :
5.08psi, 5.08psi
PressureFluidMaxDeltaPNormalLife :
58psi(399.90kPa)
ProductAlert :
Notforusewithsteam
ProductDestination :
pressureindependentcontrolvalves
ProductOrComponentType :
Valve-actuatorassembly
Rangeability :
1000:1
SeatLeakage :
PortA:ClassIV(0.01%)
SeatMaterial :
PortA:brass
StemMovement :
Linear
TemperatureAmbientOperatingRange :
32\xe2\x80\xa6131\xc2\xb0F(0\xe2\x80\xa655\xc2\xb0C)
TemperatureShippingandStorageRange :
-40\xe2\x80\xa6158\xc2\xb0F(-40\xe2\x80\xa670\xc2\xb0C)
ValveProductRange :
SpaceLogic
ValveProductSeries :
VP229E
ValveType :
PressureIndependent
