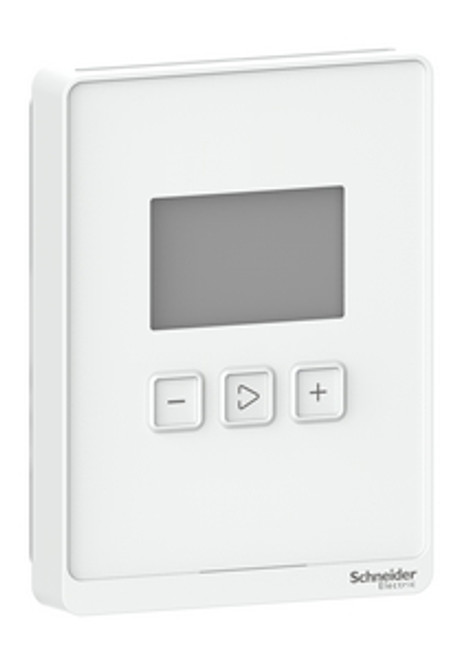

SLAWLCVX

[Us]ratedsupplyvoltage :

20...30VDC, 24VAC

Application :

Fanspeedcontroller, HVAC, Temperaturecontrol

Brand :

SchneiderElectric

BySchneider :

Yes

Color :

White

CommunicationNetworkType :

Wired

Connections-Terminals :

Screwterminal-2AWG24...AWG18)

ControlType :

-button, +button, Arrowbutton

Depth :

0.93in(23.7mm)

DevicePresentation :

Completeproduct

DisplaySize :

2inch

DisplayType :

LCDdisplay

FinalResultforConnectable :

Connectableready

FinalResultforFlywheelperformancetracking :

Connectableready

FunctionAvailable :

WithCO2sensor, Withtemperaturesensor, WithVOC(volatileorganiccompounds)sensor

GlobalKeywords :

Analog, HVAC, IAQ, Sensor, SLA

Height :

3.35in(85mm)

InformationDisplayed :

Airqualityindex, CO2, Menu-drivenuserinterface, Temperature, Temperaturesetpoint

Location :

LivingSpace

Material :

ABS(acrylonitrilebutadiene-styrene)

MountingSupport :

WallMount

NetworkFrequency :

50Hz, 60Hz

NumberOfOutputs :

1configurable, 1fan

OutputType :

Analog

OutputVoltage :

0...10Vconfigurableanalogoutput, 0...10Vfanspeed, 0...5Vconfigurableanalogoutput

ProductCertifications :

CEEN61000-6-2, CEEN61000-6-3, CEEN61326-1, CULus, EAC, ICES-003, RCM

ProductName :

SpaceLogicRoomUnit

ProductOrComponentType :

Sensor

ProductSpecificApplication :

Indoorairqualitycontrol

Range :

SpaceLogic

RangeCompatibility :

EcoStruxureBuildingOperationSmartXRoomPurposeControllerprogrammablecontrollers

RepeatAccuracy :

+/-20ppm

SCIPNumber :

89bfcc78-dfb0-469a-8211-c50fc133952d

SensorType :

NDIR(non-dispersiveinfrared), transmitter, VOCtransmitter

Standards :

FCCPart15classB, UL916

SurfaceFinish :

Glossy

Sustainableofferstatus :

GreenPremiumproduct

TemperatureAmbientOperatingRange :

32\xe2\x80\xa6122\xc2\xb0F(0\xe2\x80\xa650\xc2\xb0C)

TemperatureSettingRange :

32\xe2\x80\xa6122\xc2\xb0F(0\xe2\x80\xa650\xc2\xb0C), 50\xe2\x80\xa695\xc2\xb0F(10\xe2\x80\xa635\xc2\xb0C)

TypeOfMeasurement :

CarbonDioxide(CO2), Temperature, VolatileOrganicCompounds(VOC)

Width :

4.53in(115mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SPACELOGIC%20SLA%20SERIES%20AIR%20QUALITY%20SENSORS%20-%20ANALOG%20INSTALLATION%20INSTRUCTIONS.PDF

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SPACELOGIC%20SLA%20SERIES%20AIR%20QUALITY%20SENSORS%20%E2%80%93%20ANALOG%20SPECIFICATION%20SHEET.PDF
