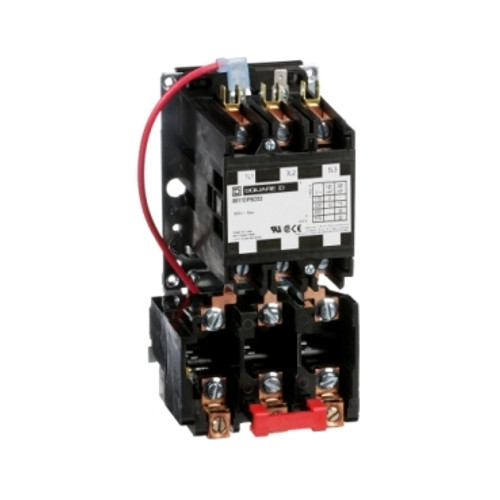

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 50 amperes. This starter has ratings of 3 HP at 115 VAC and 10 HP at 230 VAC single phase. It has a 15 HP at 230 VAC, 30 HP at 460 VAC and at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This definite purpose contactor is an open device without an enclosure. Enclosure is 6.73 inches tall, 3.50 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
- Product : Definite Purpose Starter
- Ampere Rating : 50 A
- Maximum Voltage Rating : 600 V AC
- Control Circuit Voltage : 220 V AC 50 Hz, 208...240 V AC 60 Hz
- Phase : 3 phase
- Enclosure Rating : Not rated (open device)
- Locked Rotor Amperes : 300 A 230 V AC, 250 A 460 V AC, 200 A 575 V AC
- Number of Poles : 3P
- Range : DPS
- Overload Type : Melting alloy
- Number of Thermal Units : 3
- Category : US10CP121381
- Discount Schedule : 0CP1
- GTIN : 785901025207
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.30 in (13.462 cm)
- Package 1 Width : 4.80 in (12.192 cm)
- Package 1 Length : 8.00 in (20.32 cm)
- Package 1 Weight : 2.94 lb(US) (1.334 kg)
- Warranty : 18 months
