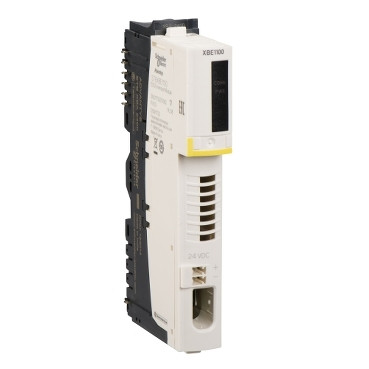

This bus extension kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This EOS internal bus extension kit is furnished with FireWire for interface. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA, UL. It is compatible with standard STB modules. The kit includes STBXTS1120, 2-terminal screw type connector, STBXTS2120, 2-terminal spring clamp connector, STBXBA2400 size 2 base and STBXBE1100 module. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
- Range of Product : Modicon STB distributed I/O solution
- Product or Component Type : EOS internal bus extension kit
- Mounting Location : End of segment (except for the last segment)
- Product Compatibility : Standard STB modules
- Electrical connection : Firewire interface
- Marking : CE
- Overvoltage category : II
- Electromagnetic compatibility : Immunity to electromagnetic interference IEC 61131-2
- Product Certifications : FM Class 1 Division 2, CSA, UL
- Pollution degree : 2 IEC 60664-1
- Operating altitude : <= 6561.68 ft (2000 m)
- IP degree of protection : IP20 conforming to IEC 61131-2 class 1
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Relative humidity : 95 % 140 °F (60 °C) without condensation
- Shock resistance : 30 gn 11 ms IEC 88 reference 2-27
- Category : US1PC3218215
- Discount Schedule : PC32
- GTIN : 3595863949254
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 0.98 in (2.500 cm)
- Package 1 Width : 3.15 in (8.000 cm)
- Package 1 Length : 5.20 in (13.200 cm)
- Package 1 Weight : 4.06 oz (115.000 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 42
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 11.36 lb(US) (5.151 kg)
- Warranty : 18 months
