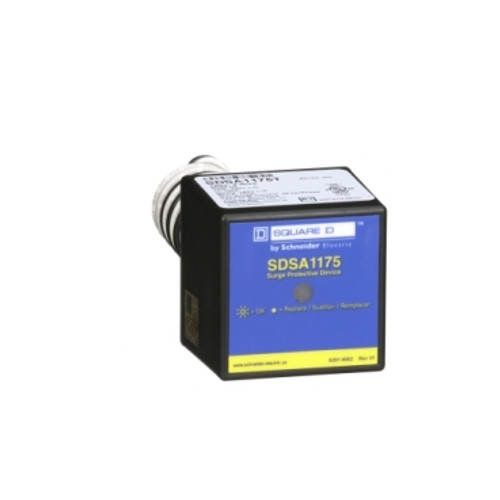

This surge protection device from Square D is a type 1 device that can be used with or without an over current protection device. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. With a short circuit current rating 25 kA, back nipple mounting, and NEMA 4X rating, this compact design can be placed adjacent to power panels. The unit is set for NEC, CSA, and UL standards.
- Product : Surge protection device
- Range : Surgelogic
- Voltage Rating : 120/240 V AC
- MCOV : 150 V
- SCCR : 25 kA
- Surge Current : 36 kA per phase
- Nominal Discharge Current : 10 kA
- Number of Phases : 1 phase
- Wiring Configuration : 3-wire
- Local Signalling : Status LED green normal operation
- Cable length : 24 in (609.60 mm)
- Height : 2.25 in (57.15 mm)
- Width : 2.25 in (57.15 mm)
- Depth : 2.7 in (68.58 mm)
- Ambient Operating : 149 °F (65 °C)
- Enclosure Rating : NEMA 4X
- Enclosure Material : Black Plastic
- Standards : UL 1449:ed. 4: type I, NEC 285, CSA C22.2 No 8
- Category : US1DE1B08462
- Discount Schedule : DE1B
- GTIN : 785901210870
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.60 in (6.604 cm)
- Package 1 Width : 2.70 in (6.858 cm)
- Package 1 Length : 6.80 in (17.272 cm)
- Package 1 Weight : 11.20 oz (317.515 g)
- Unit Type of Package 2 : CAR
- Number of Units in Package 2 : 20
- Package 2 Height : 7.40 in (18.796 cm)
- Package 2 Width : 10.80 in (27.432 cm)
- Package 2 Length : 13.10 in (33.274 cm)
- Package 2 Weight : 14.46 lb(US) (6.559 kg)
- Warranty : 18 months
