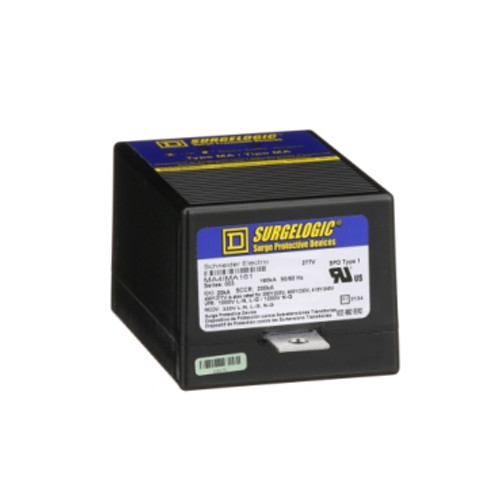

Surgelogic™ EMA and EBA series SPDs, MA4IMA16, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.
- Product : Surge protection module
- Range : Surgelogic
- Device Short Name : IMA
- Accessory Category : Replacement part
- Voltage Rating : 480Y/277 V AC
- MCOV : 320 V
- SCCR : 200 kA
- Surge Current : 160 kA per phase
- Nominal Discharge Current : 20 kA
- Number of Phases : 3 phase
- Wiring Configuration : 4-wire
- Connection : Terminals
- Local Signalling : Status LED green normal operation
- Provided Equipment : Alarm enable/disable switch
- Mounting Support : Panel mounting
- Height : 6.25 in (158.8 mm)
- Width : 3.26 in (82.8 mm)
- Depth : 2.69 in (68.3 mm)
- Ambient Operating : 149 °F (65 °C)
- Enclosure Rating : NEMA 2
- Enclosure Material : Black Plastic
- Category : US1DE1B08467
- Discount Schedule : DE1B
- GTIN : 785901292982
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.30 in (13.462 cm)
- Package 1 Width : 7.80 in (19.812 cm)
- Package 1 Length : 11.00 in (27.94 cm)
- Package 1 Weight : 32.00 oz (907.185 g)
- Warranty : 18 months
