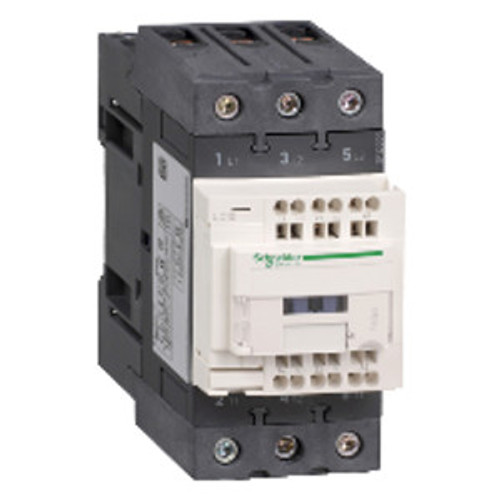

LC1D50AB7

[Icw] rated short-time withstand current :

100 A - 1 s for signalling circuit~~

[Icw] rated short-time withstand current :

120 A - 500 ms for signalling circuit

[Icw] rated short-time withstand current :

140 A - 100 ms for signalling circuit

[Icw] rated short-time withstand current :

208 A 104 °F (40 °C) - 1 min for power circuit

[Icw] rated short-time withstand current :

400 A 104 °F (40 °C) - 10 s for power circuit

[Icw] rated short-time withstand current :

810 A 104 °F (40 °C) - 1 s for power circuit

[Icw] rated short-time withstand current :

84 A 104 °F (40 °C) - 10 min for power circuit

[Ie] rated operational current :

50 A (at

[Ie] rated operational current :

80 A (at

[Ith] conventional free air thermal current :

10 A (at 140 °F (60 °C)) for signalling circuit

[Ith] conventional free air thermal current :

80 A (at 140 °F (60 °C)) for power circuit

[Uc] control circuit voltage :

24 V AC 50/60 Hz

[Ue] rated operational voltage :

Power circuit

[Ui] rated insulation voltage :

Power circuit 600 V CSA

[Ui] rated insulation voltage :

Power circuit 600 V UL

[Ui] rated insulation voltage :

Power circuit 690 V IEC 60947-4-1

[Ui] rated insulation voltage :

Signalling circuit 600 V CSA

[Ui] rated insulation voltage :

Signalling circuit 600 V UL

[Ui] rated insulation voltage :

Signalling circuit 690 V IEC 60947-1

[Uimp] rated impulse withstand voltage :

6 kV IEC 60947

Associated Fuse Rating :

10 A gG for signalling circuit conforming to IEC 60947-5-1

Associated Fuse Rating :

100 A gG at

auxiliary contact composition :

1 NO + 1 NC

auxiliary contacts type :

Mechanically linked 1 NO + 1 NC IEC 60947-5-1

auxiliary contacts type :

Mirror contact 1 NC IEC 60947-4-1

average impedance :

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

56

climatic withstand :

IACS E10 exposure to damp heat

climatic withstand :

IEC 60947-1 Annex Q category D exposure to damp heat

coil technology :

Without built-in suppressor module

Connections - Terminals :

Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end

Connections - Terminals :

Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end

Connections - Terminals :

Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end

Connections - Terminals :

Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end

Connections - Terminals :

Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end

Connections - Terminals :

Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end

Connections - Terminals :

Power circuit: screw connection 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible with cable end

Connections - Terminals :

Power circuit: screw connection 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible without cable end

Connections - Terminals :

Power circuit: screw connection 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: solid without cable end

Connections - Terminals :

Power circuit: screw connection 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible with cable end

Connections - Terminals :

Power circuit: screw connection 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible without cable end

Connections - Terminals :

Power circuit: screw connection 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: solid without cable end

contact compatibility :

M2

contactor application :

Motor control

contactor application :

Resistive load

control circuit type :

AC 50/60 Hz standard

control circuit voltage limits :

0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz

control circuit voltage limits :

0.8...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 50 Hz

control circuit voltage limits :

0.85...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 60 Hz

control circuit voltage limits :

1...1.1 Uc (140…158 °F (60…70 °C)):operational AC 50/60 Hz

Depth :

4.7 in (120 mm)

Device Short Name :

LC1D

Electrical Durability :

1.1 Mcycles 80 A AC-1

Electrical Durability :

1.45 Mcycles 50 A AC-3

Electrical Durability :

1.45 Mcycles 50 A AC-3e

Final Result for Flywheel performance tracking :

Non Flywheel

fire resistance :

1562 °F (850 °C) IEC 60695-2-1

Flame Retardance :

V1 conforming to UL 94

Global Keywords :

3-pole contactor

Global Keywords :

AC coil

Global Keywords :

AC-3

Global Keywords :

Built-in auxiliary contact

Global Keywords :

Everlink power terminals

Global Keywords :

LC1D

Global Keywords :

Magnetic contactor

Global Keywords :

Motor control

Global Keywords :

Motor switching

Global Keywords :

Power contactor

Global Keywords :

Screw clamp control terminals

Global Keywords :

TeSys D

Global warming ; Total life cycle? :

56 kg CO2 eq.

Heat Dissipation :

4…5 W at 50/60 Hz

Height :

4.8 in (122 mm)

Hold-In Power Consumption In Va :

13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))

Hold-In Power Consumption In Va :

15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))

inrush power in VA :

140 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C))

inrush power in VA :

160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))

insulation resistance :

> 10 MOhm for signalling circuit

IP Degree of Protection :

IP20 front face IEC 60529

Irms rated making capacity :

140 A AC for signalling circuit conforming to IEC 60947-5-1

Irms rated making capacity :

250 A DC for signalling circuit conforming to IEC 60947-5-1

Irms rated making capacity :

900 A at 440 V for power circuit conforming to IEC 60947

Life cycle Comment :

202410_ZHANG Yan and Rain SHI confirmed the offer is upgraded with new feature adding hence refresh the open date and VI tagging_SL

Manufacturer :

Schneider Electric

Maximum Horse Power Rating :

15 hp at 200/208 V AC 50/60 Hz for 3 phase motors

Maximum Horse Power Rating :

15 hp at 230/240 V AC 50/60 Hz for 3 phase motors

Maximum Horse Power Rating :

3 hp at 115 V AC 50/60 Hz for 1 phase motors

Maximum Horse Power Rating :

40 hp at 460/480 V AC 50/60 Hz for 3 phase motors

Maximum Horse Power Rating :

40 hp at 575/600 V AC 50/60 Hz for 3 phase motors

Maximum Horse Power Rating :

7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors

maximum operating rate :

3600 cyc/h at 60 °C

Mechanical Durability :

6 Mcycles

Mechanical Robustness :

Shocks contactor closed 15 Gn for 11 ms)

Mechanical Robustness :

Shocks contactor open 10 Gn for 11 ms)

Mechanical Robustness :

Vibrations contactor closed 4 Gn, 5...300 Hz)

Mechanical Robustness :

Vibrations contactor open 2 Gn, 5...300 Hz)

minimum switching current :

5 mA for signalling circuit

minimum switching voltage :

17 V for signalling circuit

motor power kW :

11 kW at 400 V AC 50/60 Hz (AC-4)

motor power kW :

15 kW at 220...230 V AC 50/60 Hz (AC-3)

motor power kW :

15 kW at 220...230 V AC 50/60 Hz (AC-3e)

motor power kW :

22 kW at 380...400 V AC 50/60 Hz (AC-3)

motor power kW :

22 kW at 380...400 V AC 50/60 Hz (AC-3e)

motor power kW :

25 kW at 415 V AC 50/60 Hz (AC-3)

motor power kW :

25 kW at 415 V AC 50/60 Hz (AC-3e)

motor power kW :

30 kW at 440 V AC 50/60 Hz (AC-3)

motor power kW :

30 kW at 440 V AC 50/60 Hz (AC-3e)

motor power kW :

30 kW at 500 V AC 50/60 Hz (AC-3)

motor power kW :

30 kW at 500 V AC 50/60 Hz (AC-3e)

motor power kW :

33 kW at 660...690 V AC 50/60 Hz (AC-3)

motor power kW :

33 kW at 660...690 V AC 50/60 Hz (AC-3e)

Mounting Support :

Plate

Mounting Support :

Rail

Net Weight :

1.885 lb(US) (0.855 kg)

non-overlap time :

1.5 ms on de-energisation between NC and NO contact

non-overlap time :

1.5 ms on energisation between NC and NO contact

Number of Units in Package 2 :

10

Operating Altitude :

0...9842.52 ft (0...3000 m)

Operating Time :

12...26 ms closing

Operating Time :

4...19 ms opening

Overvoltage Category :

III

Package 2 GTIN :

13389119408629

Package 2 Height :

5.91 in (15.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

21.720 lb(US) (9.852 kg)

Package 2 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Permissible Ambient Air Temperature Around The Dev :

140…158 °F (60…70 °C) with derating

Permissible Ambient Air Temperature Around The Dev :

-40…140 °F (-40…60 °C)

pole contact composition :

3 NO

Pollution Degree :

3

power dissipation per pole :

3.7 W AC-3

power dissipation per pole :

3.7 W AC-3e

power dissipation per pole :

9.6 W AC-1

Product Certifications :

CB Scheme

Product Certifications :

CCC

Product Certifications :

CE

Product Certifications :

CSA

Product Certifications :

EAC

Product Certifications :

Marine

Product Certifications :

UKCA

Product Certifications :

UL

Product Or Component Type :

Contactor

protective cover :

With

Protective Treatment :

THIEC 60068-2-30

PVC free :

Yes

Range :

TeSys

Range :

TeSys Deca

rated breaking capacity :

900 A at 440 V for power circuit conforming to IEC 60947

REACh free of SVHC :

Yes

safety reliability level :

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1

safety reliability level :

B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

signalling circuit frequency :

25...400 Hz

Standards :

CSA C22.2 No 14

Standards :

EN 60947-4-1

Standards :

EN 60947-5-1

Standards :

IEC 60335-1:Clause 30.2

Standards :

IEC 60335-2-40:Annex JJ

Standards :

IEC 60947-4-1

Standards :

IEC 60947-5-1

Standards :

UL 60335-2-40:Annex JJ

Standards :

UL 60947-4-1

Take-back :

No

Tightening Torque :

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm

Tightening Torque :

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2

Tightening Torque :

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2

Tightening Torque :

Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2

Tightening Torque :

Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002…0.04 in² (1…25 mm²) hexagonal 0.2 in (4 mm)

Tightening Torque :

Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.2 in (4 mm)

Toxic heavy metal free :

Yes

Type Of Network :

3P

Unit Type of Package 2 :

S02

UNSPSC Classification v19 :

39121529

UNSPSC Classification v23 :

39121529

utilisation category :

AC-1

utilisation category :

AC-3

utilisation category :

AC-3e

utilisation category :

AC-4

Volume of Package 2 :

18000.000 cm3

Warranty :

18 months

Width :

2.2 in (55 mm)
