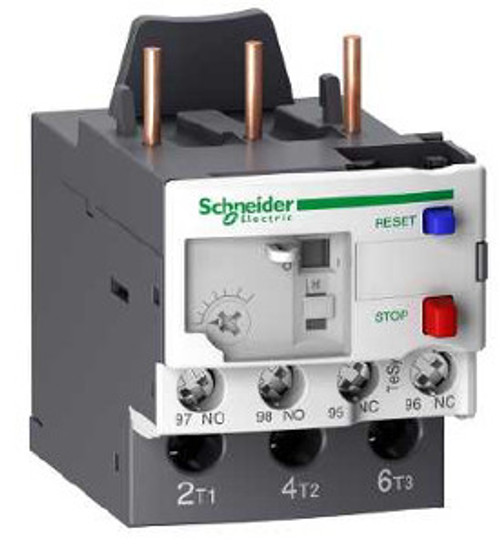

LRD32L

[Ith] conventional free air thermal current :

5 A signalling circuit~~

[Ue] rated operational voltage :

690 V AC 0...400 Hz power circuit IEC 60947-4-1

[Ui] rated insulation voltage :

Power circuit 600 V CSA

[Ui] rated insulation voltage :

Power circuit 600 V UL

[Ui] rated insulation voltage :

Power circuit 690 V IEC 60947-4-1

[Uimp] rated impulse withstand voltage :

6 kV

Ambient Air Temperature For Operation :

-4…140 °F (-20…60 °C) without derating IEC 60947-4-1

Associated Fuse Rating :

4 A BS for signalling circuit

Associated Fuse Rating :

4 A gG for signalling circuit

auxiliary contact composition :

1 NO + 1 NC

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

13

climatic withstand :

IACS E10

Connections - Terminals :

Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible with cable end

Connections - Terminals :

Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) flexible without cable end

Connections - Terminals :

Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) solid without cable end

Connections - Terminals :

Power circuit screw clamp terminals 1 0.002…0.009 in² (1…6 mm²) flexible with cable end

Connections - Terminals :

Power circuit screw clamp terminals 1 0.002…0.02 in² (1.5…10 mm²) flexible without cable end

Connections - Terminals :

Power circuit screw clamp terminals 1 0.002…0.02 in² (1.5…10 mm²) solid without cable end

Control Type :

Blue push-button reset

Control Type :

Red push-button stop

Depth :

3.0 in (76 mm)

Device Short Name :

LRD

dielectric strength :

1.89 kV 50 Hz IEC 60947-1

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

23-32 A

Global Keywords :

Class 20

Global Keywords :

LRD

Global Keywords :

Motor protection

Global Keywords :

TeSys D

Global Keywords :

TeSys LRD

Global Keywords :

Thermal overload relays

Global Keywords :

Thermal protection

Global warming ; Total life cycle? :

13 kg CO2 eq.

Height :

2.6 in (66 mm)

IP Degree of Protection :

IP20 conforming to IEC 60529

Manufacturer :

Schneider Electric

Mechanical Robustness :

Shocks15 Gn for 11 ms IEC 60068-2-7

Mechanical Robustness :

Vibrations3 Gn IEC 60068-2-6

Mounting Support :

Plate, with specific accessories

Mounting Support :

Rail, with specific accessories

Mounting Support :

Under contactor

Net Weight :

0.317 lb(US) (0.144 kg)

Network Frequency :

0...400 Hz

Network Type :

AC

Network Type :

DC

Number of Units in Package 2 :

24

Package 2 GTIN :

43606480609631

Package 2 Height :

5.91 in (15.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

10.340 lb(US) (4.690 kg)

Package 2 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

permissible current :

0.22 A 125 V DC-13 signalling circuit

permissible current :

3 A 120 V AC-15 signalling circuit

phase failure sensitivity :

Tripping current 130 % of Ir on two phase, the last one at 0

Product Certifications :

ABS

Product Certifications :

ATEX INERIS

Product Certifications :

CSA

Product Certifications :

EAC

Product Certifications :

IEC

Product Certifications :

UKCA

Product Certifications :

UL

Product Compatibility :

LC1D25

Product Compatibility :

LC1D32

Product Compatibility :

LC1D38

Product Name :

TeSys Deca

Product Name :

TeSys LRD

Product Or Component Type :

Differential thermal overload relay

Range :

TeSys

Range :

TeSys Deca

REACh free of SVHC :

Yes

relay application :

Motor protection

SCIP Number :

224fb0ea-2bc1-482e-b6b4-c1bdd9779659

Standards :

CSA C22.2 No 60947-4-1

Standards :

CSA C22.2 No 60947-5-1

Standards :

EN 50495

Standards :

EN/IEC 60947-4-1

Standards :

EN/IEC 60947-5-1

Standards :

UL 60947-4-1

Standards :

UL 60947-5-1

Sustainable packaging :

Yes

Take-back :

No

temperature compensation :

-4…140 °F (-20…60 °C)

Temperature Shipping and Storage Range :

-76…158 °F (-60…70 °C)

thermal overload class :

Class 20 IEC 60947-4-1

thermal protection adjustment range :

23…32 A

Tightening Torque :

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals

Tightening Torque :

Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals

Toxic heavy metal free :

Yes

tripping threshold :

1.14 +/- 0.06 Ir IEC 60947-4-1

Unit Type of Package 2 :

S02

UNSPSC Classification v19 :

39122330

UNSPSC Classification v23 :

39122330

Volume of Package 2 :

18000.000 cm3

Warranty :

18 months

Width :

1.8 in (45 mm)
