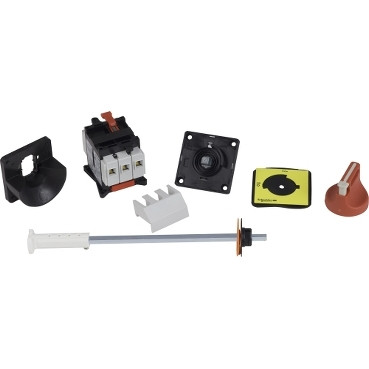

VCCF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 32A 690V, it is used for main and emergency stop switching in motor applications up to 11KW@400V AC-23. Composed of a V1 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 120
- Package 3 Height : 31.50 in (80 cm)
- Package 3 Width : 31.50 in (80 cm)
- Package 3 Length : 23.62 in (60 cm)
- Package 3 Weight : 121.53 lb(US) (55.124 kg)
- Warranty : 18 months |PDF1
