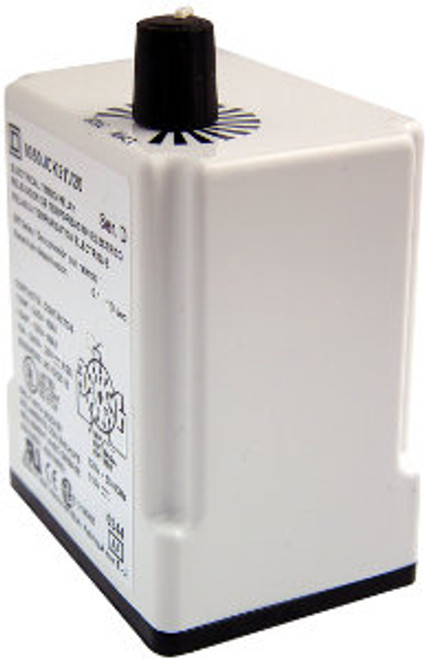

Timer Relay: |240VAC |10A |120VAC-110VDC |11 Pins |Socket Mounting |0.1-10 Seconds |Up to +/- 0.1 Percentage Repeat Accuracy; Transient Protected; Variable or Fixed Time Delay; Available in 5 timing modes.
- [Uc] control circuit voltage : 110 V DC~~
- [Uc] control circuit voltage : 120 V AC
- Brand : Square D
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 50
- Contacts Material : Silver nickel
- Contacts Type And Composition : 2 NO + 2 NC
- Depth : 4.09 in (104 mm)
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 0.1 to 10 seconds
- Global Keywords : 110 VDC
- Global Keywords : 120 VAC
- Global Keywords : Adjustable time
- Global Keywords : Electrronic timing relay
- Global Keywords : General purpose plug in timer
- Global Keywords : Low voltage
- Global Keywords : Off delay
- Global Keywords : Plug in timer
- Global Keywords : Timer
- Global Keywords : Timer relay
- Global Keywords : Timing relay
- Global warming ; Total life cycle? : 50 kg CO2 eq.
- Height : 2.4 in (61 mm)
- Hold-In Power Consumption In Va : 2 VA
- Indivisible Sale Qty : 1
- Line Rated Current : 10 A
- Manufacturer : Schneider Electric
- maximum switching voltage : 240 V AC
- Mounting Support : Socket
- Number of Units in Package 2 : 20
- Package 2 GTIN : 10785901032615
- Package 2 Height : 4.50 in (11.43 cm)
- Package 2 Length : 11.00 in (27.94 cm)
- Package 2 Weight : 5.501 lb(US) (2.495 kg)
- Package 2 width : 10.00 in (25.4 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- pin number : 11
- Product Certifications : CE
- Product Certifications : UL Listed
- Product Certifications : UL Recognized
- Product Compatibility : 8501NR61
- Product Compatibility : 8501NR62
- Product Or Component Type : Timer
- REACh free of SVHC : Yes
- shape of pin : Tubular
- Switch Function : DPDT
- Take-back : No
- Temperature Ambient Operating Range : -28…66 °C (-18…150 °F)
- time delay range : 0.1...10 s
- time delay type : Off-delay
- Toxic heavy metal free : Yes
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39122329
- UNSPSC Classification v23 : 39122329
- Volume of Package 2 : 8111.596680000001 cm3
- Warranty : 18 months
- Width : 1.7 in (43 mm)
