Overview
Pneumatic thermostat gives comparable control of pneumatic valves and damper actuators in heating & air conditioning systems. Replacement kits available for Johnson, Powers, Robertshaw, Barber-Colman, and past Honeywell 2-pipe pneumatic thermostats.
Features

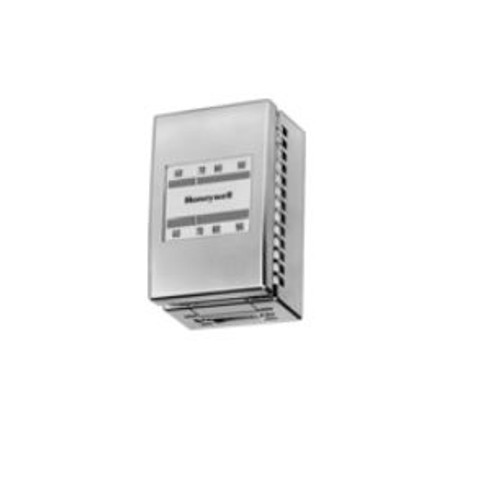

Honeywell's best pneumatic thermostat-TP970 series.Shock-resistant, suspension-mounted thermostats provide dependable performance and responsiveness year in and year out.Pilot operated for high capacity.Direct Acting (DA) and Reverse Acting (RA) models are available.Wide throttling range models for Zero Energy Band (ZEB) operation are available.Adapter plate in Convertastat™ and Modernization kits covers existing thermostat wall mark.Backplate has molded air connections-no separate fittings needed.Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options.Typical Wide Throttling Range Application.
- Application : Heating
- Airflow Usage : 0.011 scfm (5.2 mL/s)
- Dimensions (in.) : 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
- Dimensions (mm) : 83 mm high x 51 mm wide x 41 mm deep
- Maximum Safe Operating Pressure (psi) : 25 psi
- Maximum Safe Operating Pressure (kPa) : 170 kPa
- Temperature Range (F) : 100 F maximum
- Includes : Order Cover Separately
- Mounting : Wall mount
- Setpoint Temperature Range (F) : 59 F to 90 F
- Shipping and Storage Temperature Range (F) : 150 F maximum
- Shipping and Storage Temperature Range (C) : 66 C maximum
- Sensor Element : Bimetal
- Throttling Range (F) : 2 F to 10 F (factory set 4 F)
- Throttling Range (C) : -16 C to -12 C (factory set -15 C)
- Action : Direct Acting
- Setpoint : Single
- Number of Pipes : 2
