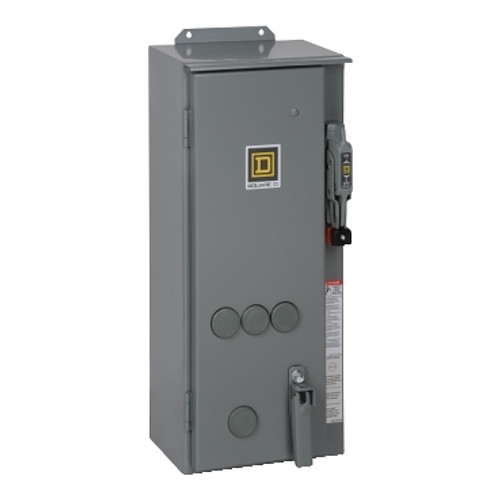

COMBO STARTER 600VAC 18A NEMA
- Product : Combination Starter
- Type : S
- Control Circuit Type : Separate control circuit
- Control Circuit Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz
- Starter Type : Non reversing
- Number of Poles : 3P
- Maximum Voltage Rating : 600 V AC
- Control Units : No control units
- Pilot Light : No indicator
- Auxiliary Contacts : Without
- Thermal overload type : Melting alloy 3
- Disconnect Type : Non-fusible disconnect switch
- NEMA size : 0
- Enclosure Type : NEMA 12 painted sheet steel with external reset
- Category : 21212-8538,39SB(NOT S*R,S*T,S*W)
- Discount Schedule : CP1
- GTIN : 785901830405
- Returnability : No
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 10.60 in (26.924 cm)
- Package 1 Width : 10.60 in (26.924 cm)
- Package 1 Length : 27.00 in (68.58 cm)
- Package 1 Weight : 45.00 lb(US) (20.412 kg)
- Warranty : 18 months
