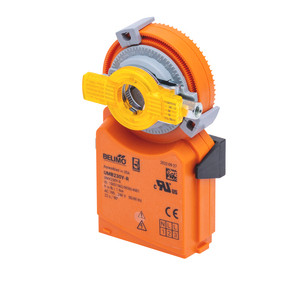

Belimo product UMB230Y-R.1 technical information.
Technical Specifications:
- Voltage AC/DC: AC 100...240 V
- Power Consumption (Running): 2 W
- Power Consumption (Holding): 1.5 W
- Power Consumption For Wire Sizing: 4.5 VA
- Connection Supply Control: Connector Plug (Cable-side connector socket not included in scope of delivery)
- Connection Plug: Molex Mini-Fit Jr. 39303035
- Control Type: On/Off
- Direction Of Motion Motor: clockwise rotation
- Manual Override: No
- Angle of Rotation: 180
- Running Time (Motor): 22 s / 90°
- Mechanical Interface: Universal shaft clamp 6...12.7 mm
- Protection category: IP20
- Degree Of Protection NEMA: NEMA 1
- Enclosure Type: UL Enclosure Type 1
- Ambient Tempreture: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Belimo
SKU: UMB230Y-R.1
