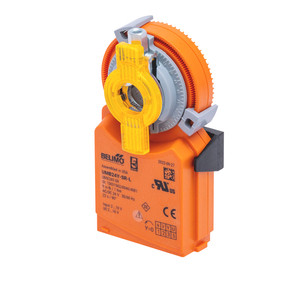

Rotary Actuator, AC/DC 24 V, 2...10 V, 22 s, IP20, Connector PlugMultipack 100 pcs.
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 1.5 W
- Power Consumption (Holding) : 0.5 W
- Power Consumption For Wire Sizing : 2.5 VA
- Connection Supply Control : Connector Plug (Cable-side connector socket not included in scope of delivery)
- Connection Plug : Molex Mini-Fit Jr. 39303045
- Control Type : Modulating
- Direction Of Motion Motor : clockwise rotation
- Manual Override : No
- Angle of Rotation : 95
- Running Time (Motor) : 22 s / 90°
- Mechanical Interface : Universal shaft clamp 6...12.7 mm
- Protection category : IP20
- Degree Of Protection NEMA : NEMA 1
- Enclosure Type : UL Enclosure Type 1
- Ambient Tempreture : -22...122°F [-30...50°C]
