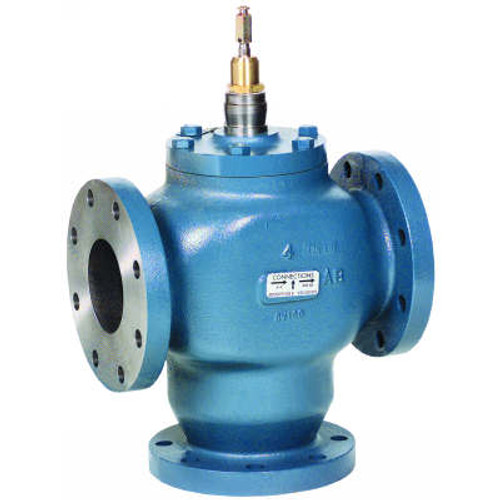

Three-way: Globe: 2 1/2 in: Flanged: 63 Cv: Water or Glycol|GLOBE VALVE - 2-1/2 IN. ANSI 125 FLANGED - 3-WAY MIXING - 63 CV - BRASS TRIM - LINEAR FLOW
- Valve Bonnet Size : 1.375in; 35mm
- Brand : Honeywell
- Flow Coefficient : 63Cv; 54Kvs
- Valve Stem Travel : 0.75inch
- Overall Depth : 7in; 178mm
- Actuator Included : No
- Valve Seat Material : Bronze
- Media Restrictions : Not Suitable for Open Loop Systems such as Condenser Water or Potable Water
- Valve Body Pattern : 3-way Mixing
- Overall Width : 241mm; 9.5in
- Valve Plug Material : Bronze
- Valve Stem Action : Stem Up to Close Port A-AB
- Flange Rating : ANSI Class 125
- Valve Series : V5013B
- Valve Body Material : Cast Iron
- Pipe Connection Type : Flange
- Valve Type : Globe Valve
- Overall Height : 367mm; 14.438in
- Pipe Connection Size : 2.5inch
- Valve Stem Material : Stainless Steel
- Maximum Operating Pressure : 150pounds per square inch
- Valve Flow Characteristic : Linear; Constant Total Flow Throughout Full Plug Travel
- Controlled Media : Chilled or hot water- up to 50% glycol
- Minimum Medium Temperature : 40°F; 4.5°C
- Valve Trim : Bronze
- Valve Stroke : 0.75in; 20mm
- Controlled Medium : Water/Glycol
- Valve Pressure Rating : 150psi; 1034kPa
- Maximum Medium Temperature : 116°C; 240°F
- PNC-Display SKU : V5013B Series
- Valve Connection Type : ANSI 125 Flanged
- PNC-Selector : Valve+Actuator
- Application : Pressure Dependent
- Control Type : On/Off; Modulating
- Valve Size Diameter : 2.5in; 65DN
