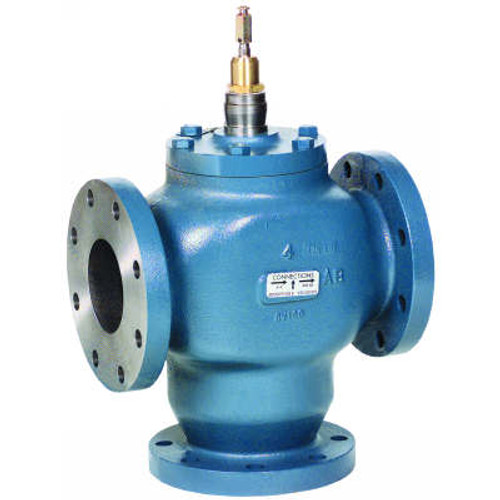

Three-way: Globe: 3 in: Flanged: 100 Cv: Water or Glycol|GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 3-WAY DIVERTING - 100 CV - BRASS TRIM - LINEAR FLOW
- Valve Bonnet Size : 35mm; 1.375in
- Brand : Honeywell
- Flow Coefficient : 100Cv; 85Kvs
- Valve Stem Travel : 0.75inch
- Overall Depth : 191mm; 7.5in
- Actuator Included : No
- Valve Seat Material : Bronze
- Media Restrictions : Not Suitable for Open Loop Systems such as Condenser Water or Potable Water
- Valve Body Pattern : 3-way Diverting
- Overall Width : 279mm; 11in
- Valve Plug Material : Bronze
- Valve Stem Action : Stem Down to Close Port A-AB
- Flange Rating : ANSI Class 125
- Valve Series : V5013C
- Valve Body Material : Cast Iron
- Pipe Connection Type : Flange
- Valve Type : Globe Valve
- Overall Height : 391mm; 15.375in
- Pipe Connection Size : 3inch
- Valve Stem Material : Stainless Steel
- Maximum Operating Pressure : 150pounds per square inch
- Valve Flow Characteristic : Linear; Constant Total Flow Throughout Full Plug Travel
- Controlled Media : Chilled or hot water- up to 50% glycol
- Minimum Medium Temperature : 4.5°C; 40°F
- Valve Trim : Bronze
- Valve Stroke : 0.75in; 20mm
- Controlled Medium : Water/Glycol
- Valve Pressure Rating : 1034kPa; 150psi
- Maximum Medium Temperature : 116°C; 240°F
- PNC-Display SKU : V5013C Series
- Valve Connection Type : ANSI 125 Flanged
- PNC-Selector : Valve+Actuator
- Application : Pressure Dependent
- Control Type : On/Off; Modulating
- Valve Size Diameter : 80DN; 3in
