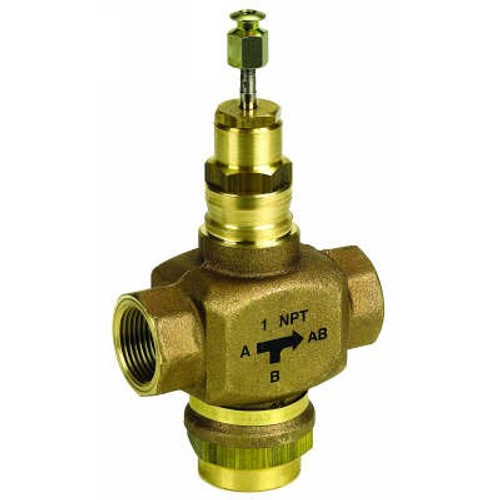

Three-way: Globe: 1 1/4 in: (Female) NPT: 18.7 Cv: Water or Glycol|GLOBE VALVE - 1-1/4 IN. NPT - 3-WAY MIXING - 18.7 CV - BRASS TRIM - EQUAL PERCENTAGE
- Valve Bonnet Size : 35mm; 1.375in
- Brand : Honeywell
- Flow Coefficient : 18.7Cv; 16Kvs
- Valve Stem Travel : 0.75inch
- Leakage : ANSI Class III (Less than 0.05% of Cv)
- Actuator Included : No
- Valve Seat Material : Integral Brass (Upper); Brass (Lower)
- Media Restrictions : Not Suitable for Open Loop Systems such as Condenser Water or Potable Water
- Media Temperature Range : 36 °F to 248Fahrenheit
- Valve Body Pattern : 3-way Mixing
- Overall Width : 4.188in; 106mm
- Valve Plug Material : Brass
- Valve Stem Action : Stem Up to Close Port A-AB
- Valve Series : V5013N
- Valve Body Material : Red Brass
- Pipe Connection Type : Female NPT
- Application : Commercial HVAC
- Valve Type : Globe Valve
- Pipe Connection Size : 1.25inch
- Valve Stem Material : Stainless Steel
- Maximum Operating Pressure : 217pounds per square inch
- Valve Flow Characteristic : Port A Equal Pecentage; Port B Linear
- Controlled Media : Chilled or hot water- up to 50% glycol
- Rangeability : 50:1 per VDI/VDE 2173
- Minimum Medium Temperature : 2.2°C; 36°F
- Valve Trim : Brass
- Valve Stroke : 20mm; 0.75in
- Controlled Medium : Water/Glycol
- Valve Pressure Rating : 15bar; 217psi
- Maximum Medium Temperature : 169°C; 337°F
- PNC-Display SKU : V5013N Series
- Valve Connection Type : NPT
- PNC-Selector : Valve+Actuator
- Application : Pressure Dependent
- Leakage Rating : 0.05% of Cv
- Control Type : On/Off; Modulating
- Valve Size Diameter : 32DN; 1.25in
