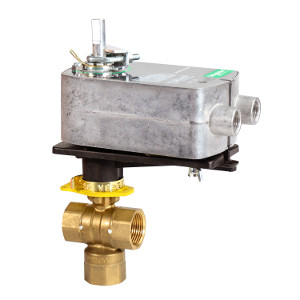

VS-2313-536-9-55

$654.23
(No reviews yet) Write a Review
SKU:
VS-2313-536-9-55
Adding to cart… The item has been added
BV 1.5IN 3W 32CV PR SR 24V
Rotation :
95 °
Rotational Range Adjustment :
40 to 95 degrees
Seat Leakage :
Port A: Class IV (0.01 %)
Stem Movement :
Rotary
Temperature Ambient Operating Range :
-22…140 °F (-30…60 °C)
Temperature Range Fluid :
19…250 °F (-7…121 °C)
Temperature Shipping and Storage Range :
-40…160 °F (-40…71 °C)
Valve Product Range :
VB-2xxx
Valve Product Series :
VB-2300
Valve Type :
Ball
[Us]ratedsupplyvoltage :
22...30VDC, 24VAC
ActuatorComment :
Actuatormountedleftsideup
ActuatorProductRange :
SmartXActuator
ActuatorProductSeries :
Mx4x-7xxx
ActuatorType :
Electric
analogueinputrange :
2...10VDC, 4...20mADC
AuxiliarySwitch :
No
BodySize :
40mm(1-1/2in)
BySchneider :
Yes
Close-OffPressure :
276kPa, 40psi
ConduitConnection :
1/2in
Configuration :
3-WayMixing/Diverting
ConnectionType :
NPT
ControlSignal :
Proportional/Modulating
FeedbackSignal :
2to10VDC
FinalResultforConnectable :
Notconnectable
FinalResultforFlywheelperformancetracking :
Notconnectable
FlowCharacteristic :
EqualPercentage
FlowCoefficient :
27.68kvs, 32cv
InsulationClass :
ClassII
IPProtectionRating :
IP11
LeadLength :
3ft
LeadsandConnections :
Plenum
LossofPowerPosition :
Normallyopen
LossofPowerType :
Springreturn
Manufacturer :
SchneiderElectric
MaterialBall :
ChromePlatedBrass, Nickel
MaterialBody :
Forgedbrass
MaterialCharacterizingInsert :
Glass-FilledNoryl
MaterialMountingPlate :
Glass-FilledPolymer
MaterialStem :
StainlessSteel
MaterialStemSeal :
EPDMO-Rings
MaterialTrim :
Brass
MechanicalMovement :
Rotary
MotorType :
BrushlessDCmotor
NEMAProtectionRating :
NEMA2
PipeSize :
1-1/2in
PositionIndicator :
StrokeIndicatorOnBracket
PowerConsumptionRunningVA :
5.6VAAC
PressureAllowableStatic :
360psi
PressureClass :
ANSIclass360
PressureFluidMaxDeltaPNormalLife :
40psi(275.79kPa)
ProductDestination :
dampers, globevalve
ProductOrComponentType :
Valve-actuatorassembly
Rotation :
95\xc2\xb0
RotationalRangeAdjustment :
40to95degrees
SeatLeakage :
PortA:ClassIV(0.01%)
StemMovement :
Rotary
TemperatureAmbientOperatingRange :
-22\xe2\x80\xa6140\xc2\xb0F(-30\xe2\x80\xa660\xc2\xb0C)
TemperatureShippingandStorageRange :
-40\xe2\x80\xa6160\xc2\xb0F(-40\xe2\x80\xa671\xc2\xb0C)
ValveProductRange :
VB-2xxx
ValveProductSeries :
VB-2300
ValveType :
Ball
