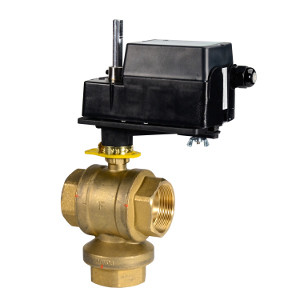

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

VF-2313-506-9-53

$498.79
(No reviews yet) Write a Review
SKU:
VF-2313-506-9-53
Adding to cart… The item has been added
3WY BALL VLV 70INLB NSR ACT
Stem Movement :
Rotary
Temperature Ambient Operating Range :
-25…130 °F (-31.6…54.4 °C)
Temperature Range Fluid :
19…250 °F (-7…121 °C)
Temperature Shipping and Storage Range :
-40…158 °F (-40…70 °C)
Valve Product Range :
VB-2xxx
Valve Product Series :
VB-2300
Valve Type :
Ball
[Us]ratedsupplyvoltage :
24VAC
ActuatorProductRange :
SmartXActuator
ActuatorProductSeries :
Mx4x-6xxx
ActuatorType :
Electric
AuxiliarySwitch :
No
BodySize :
40mm(1-1/2in)
BySchneider :
Yes
Close-OffPressure :
276kPa, 40psi
ConduitConnection :
1/2in
Configuration :
3-WayMixing/Diverting
ConnectionType :
NPT
ControlSignal :
Floating
DutyCycle :
100%
FinalResultforConnectable :
Notconnectable
FinalResultforFlywheelperformancetracking :
Notconnectable
FlowCharacteristic :
EqualPercentage
FlowCoefficient :
11.59kvs, 13.4cv
InsulationClass :
ClassII
IPProtectionRating :
IP11
LeadLength :
3ft
LeadsandConnections :
Plenum
LossofPowerType :
Non-SpringReturn
Manufacturer :
SchneiderElectric
MaterialBall :
ChromePlatedBrass, Nickel
MaterialBody :
Forgedbrass
MaterialCharacterizingInsert :
Glass-FilledNoryl
MaterialMountingPlate :
Glass-FilledPolymer
MaterialStem :
StainlessSteel
MaterialStemSeal :
EPDMO-Rings
MaterialTrim :
Brass
MechanicalMovement :
Rotary
NEMAProtectionRating :
NEMA2
Override :
Automaticreset
PipeSize :
1-1/2in
PositionIndicator :
PointerAndScaleFrom0...90\xc2\xb0
PowerConsumptionRunningVA :
2.3VAAC
PressureAllowableStatic :
360psi
PressureClass :
ANSIclass360
PressureFluidMaxDeltaPNormalLife :
40psi(275.79kPa)
ProductAlert :
Notforusewithsteam
ProductDestination :
dampers, globevalve
ProductOrComponentType :
Valve-actuatorassembly
Rotation :
95\xc2\xb0
RotationalRangeAdjustment :
0to95degrees
SeatLeakage :
PortA:ClassIV(0.01%)
StemMovement :
Rotary
TemperatureShippingandStorageRange :
-40\xe2\x80\xa6158\xc2\xb0F(-40\xe2\x80\xa670\xc2\xb0C)
ValveProductRange :
VB-2xxx
ValveProductSeries :
VB-2300
ValveType :
Ball
